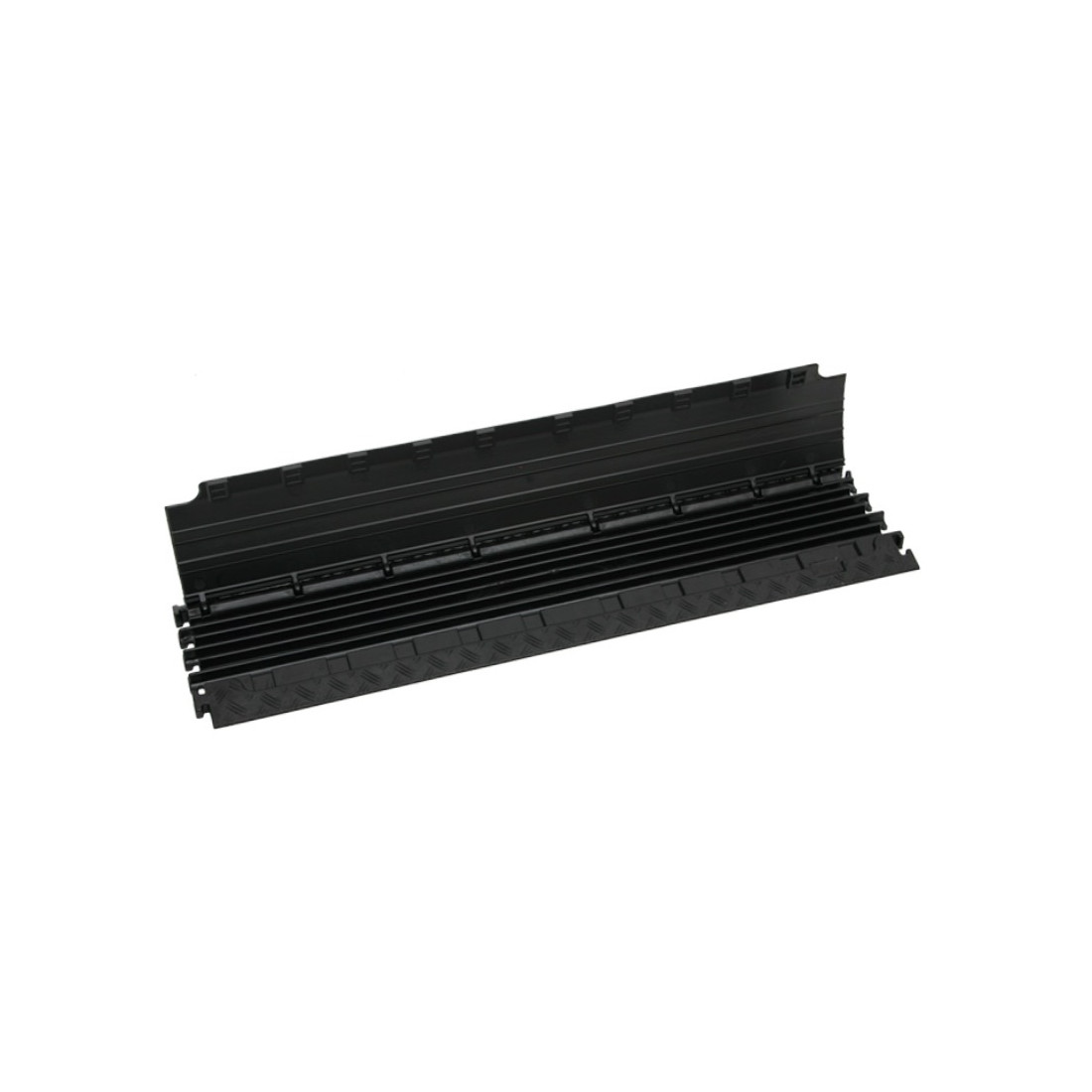

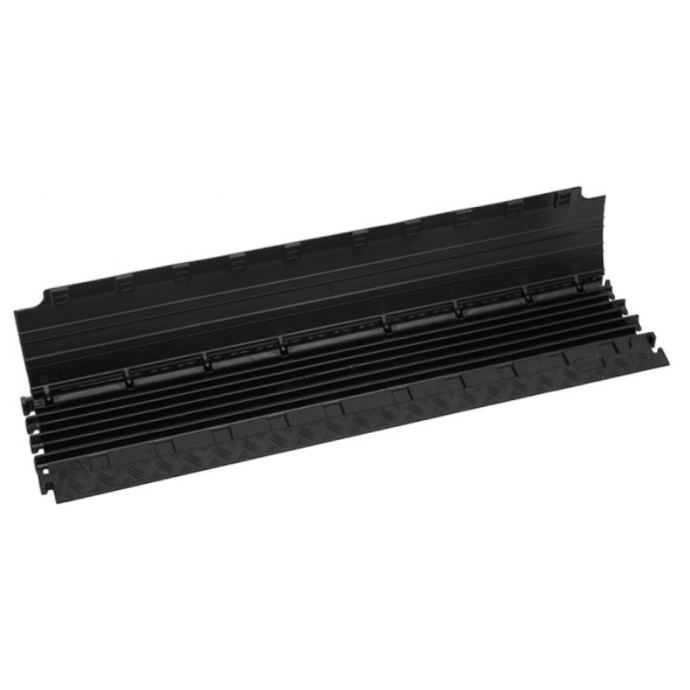

Cable grommet with 6 channels. Black cover, 1000x280x32mm.
Cable grommet with 6 channels. Black cover, 1000x280x32mm.
Cable grommet with 6 channels. Black cover, 1000x280x32mm.
Cable grommet with 6 channels. Black cover, 1000x280x32mm.
Cable grommet with 6 channels. Black cover, 1000x280x32mm.
Cable grommet with 6 channels. Black cover, 1000x280x32mm.

Cable grommet with 6 channels. Black cover, 1000x280x32mm.

310-0058

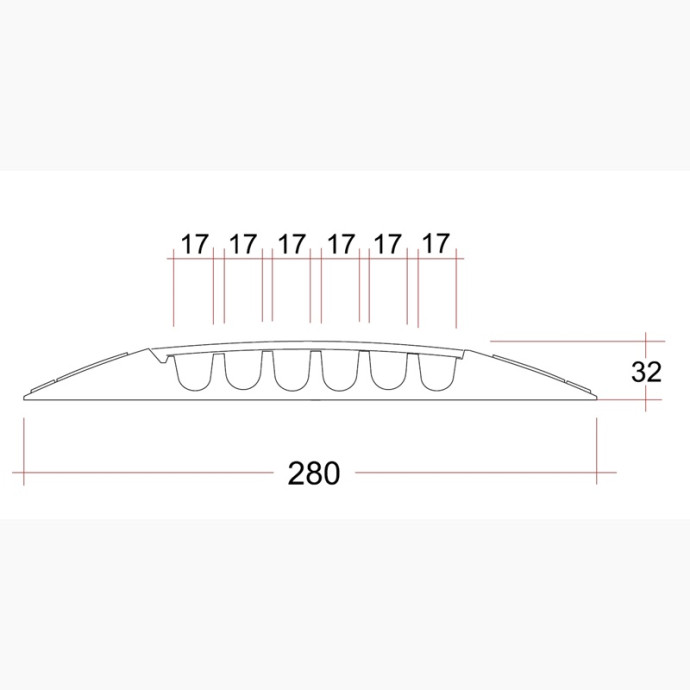

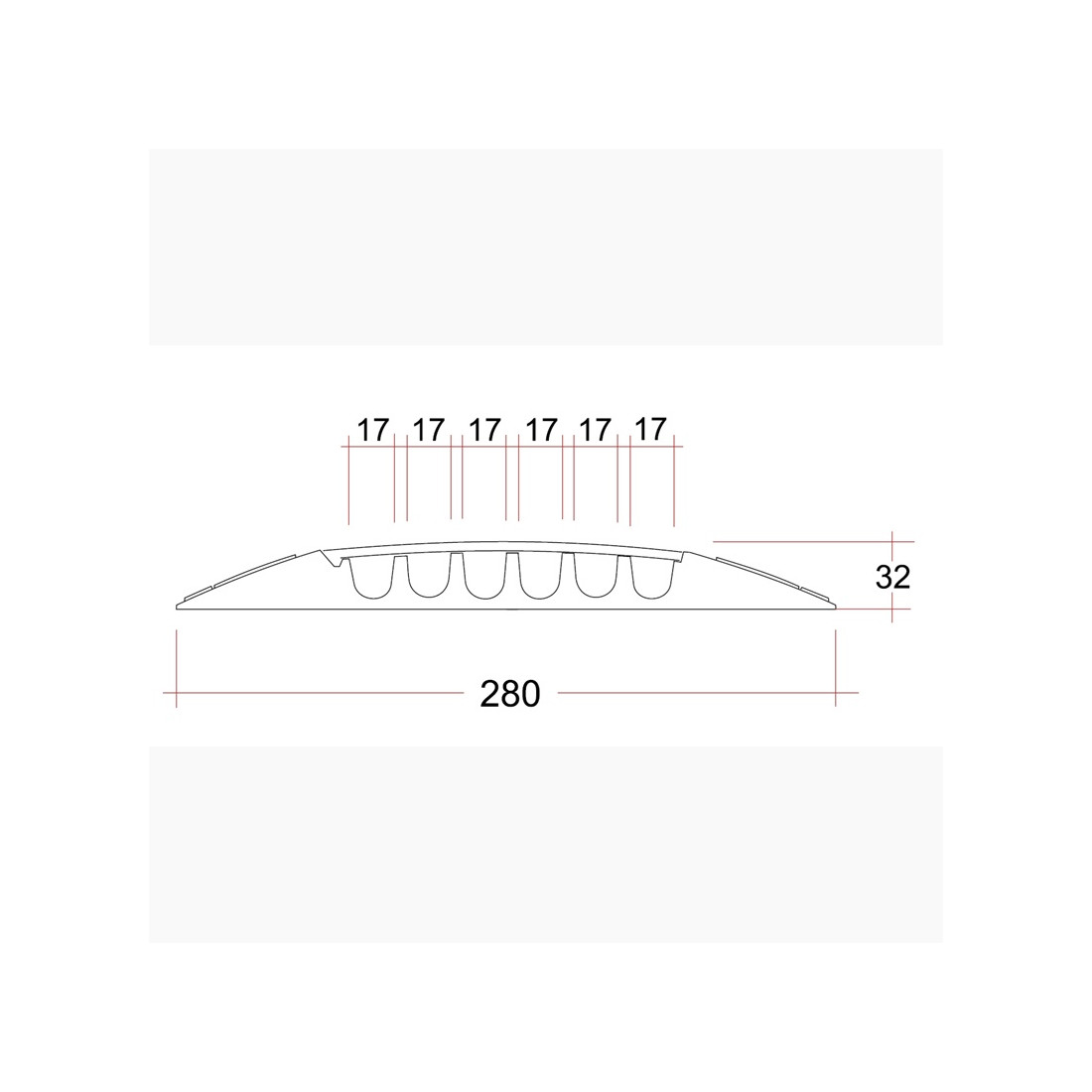

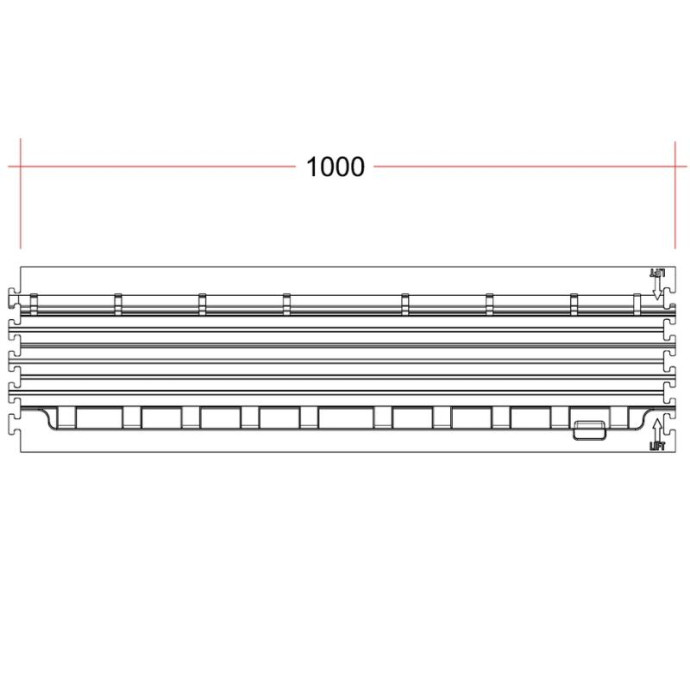

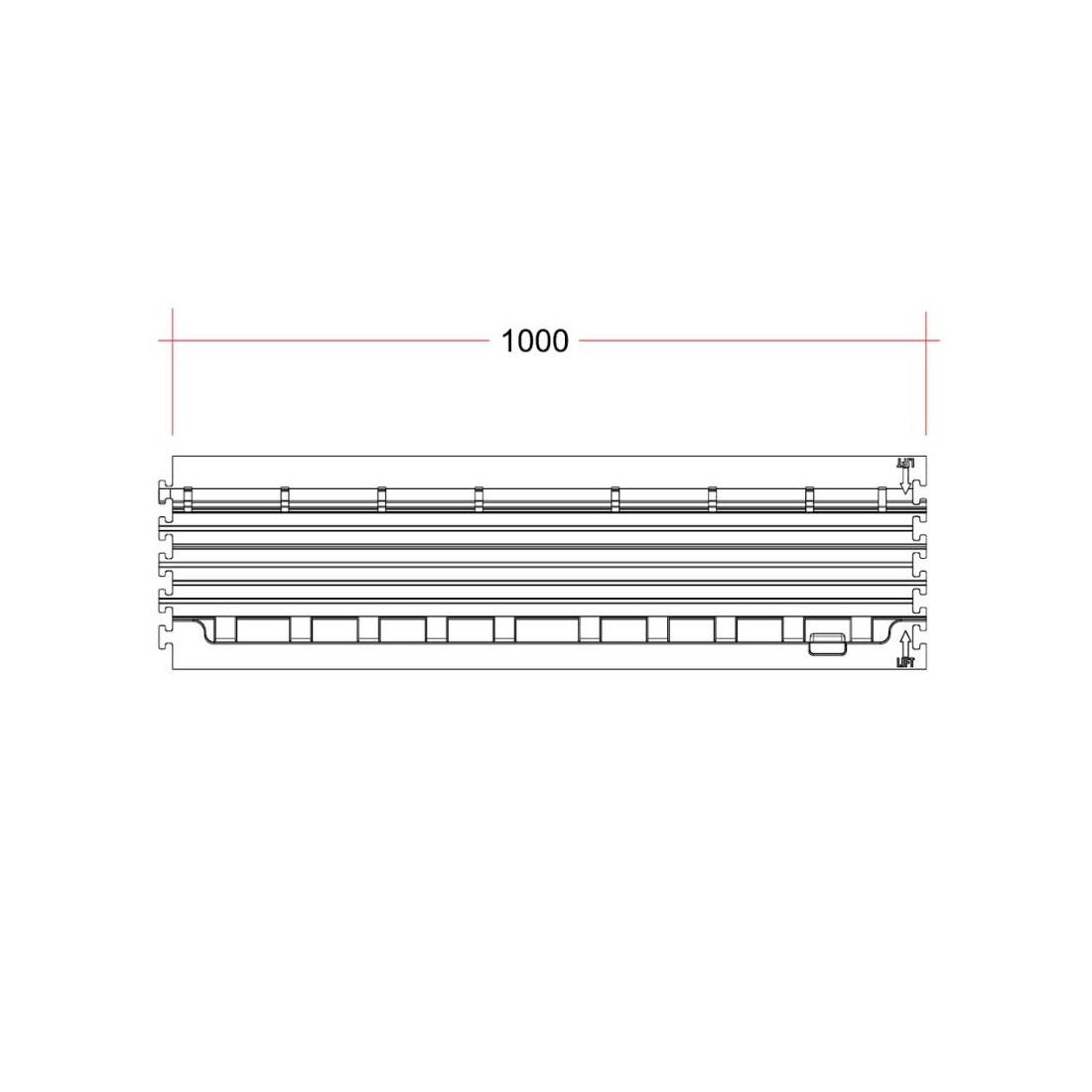

Measurements: Width 1000 x Depth 280 x Height 32 mm

Material: Polyurethane

Color: Black

Fixing: Screws (NOT supplied)

Gutter measurements: 6 of 17 x 18 mm



Available:

- Female side termination Ref.310-0059

- Male side termination Ref. 310-0060

The smallest cable protector with great potential. Lightweight, professional, wheelchair accessible, and universally applicable.

It has 6 channels.

Recommended for use in: exhibitions, sidewalks and paths, markets, Christmas markets, shops, warehouses, shopping centers, etc.

SPECIFICATIONS:

- Width and height of channels: 61 x 59 mm (channels 1 and 5), 62 x 65 mm (channels 2 and 4), 60 x 63 mm (channel 3)

- Material: TPU (Thermoplastic Polyurethane)

- Shore A hardness: 88 ± 4

- Load resistance: Approx. 5t / 20 x 20 cm (standard tire footprint area)

- Fire resistance: B2 (B1 also available)

- Resistant to: Most acids, oils, and gasoline

- Temperature: -30º to +60º C
