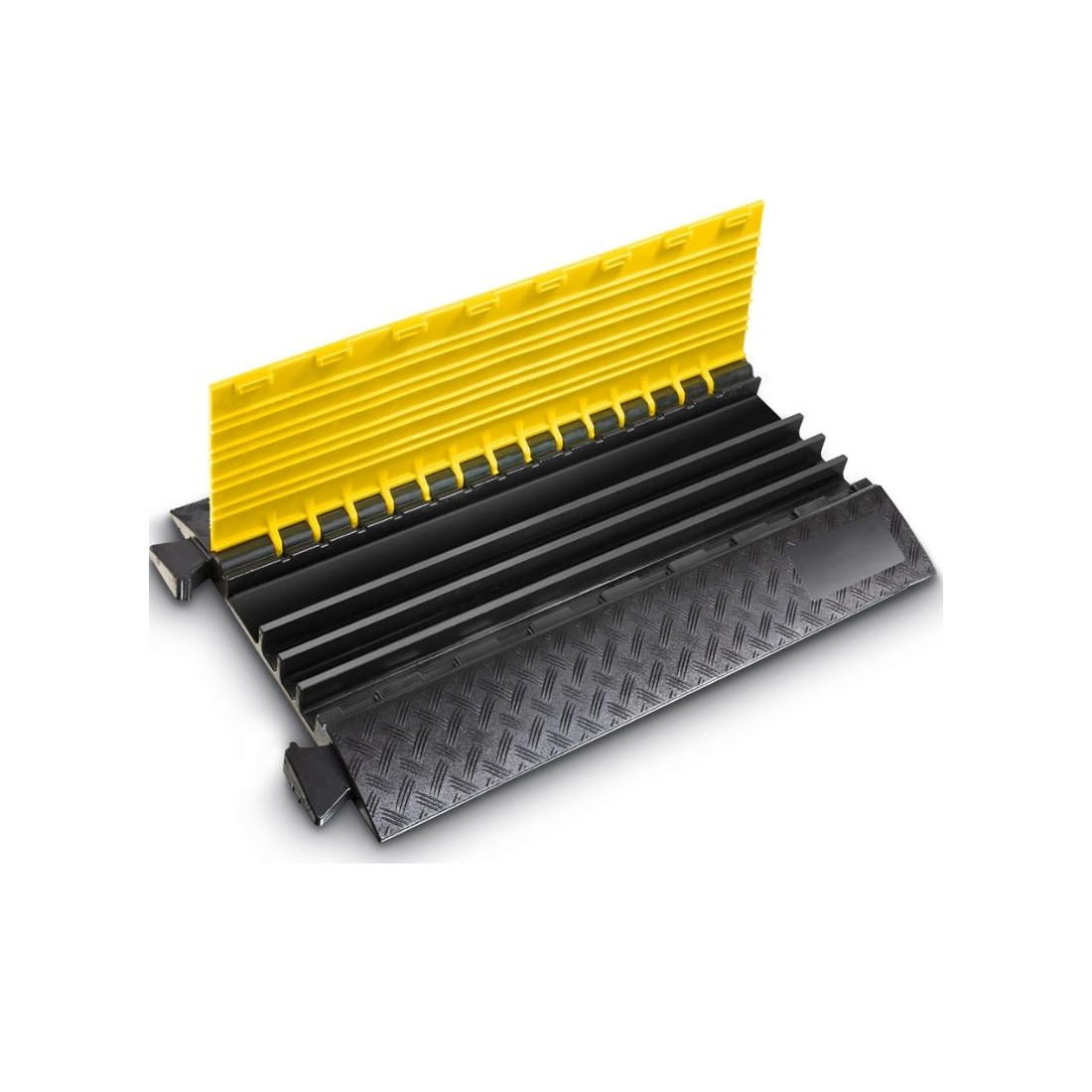

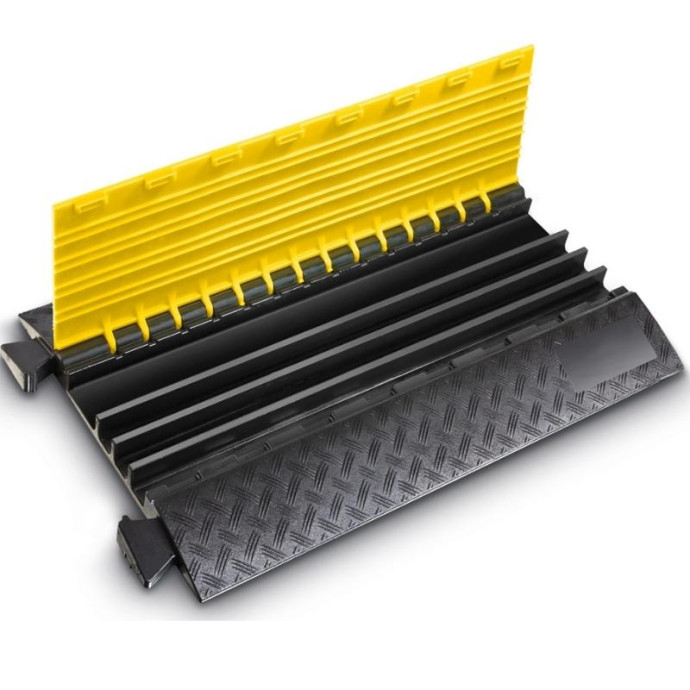

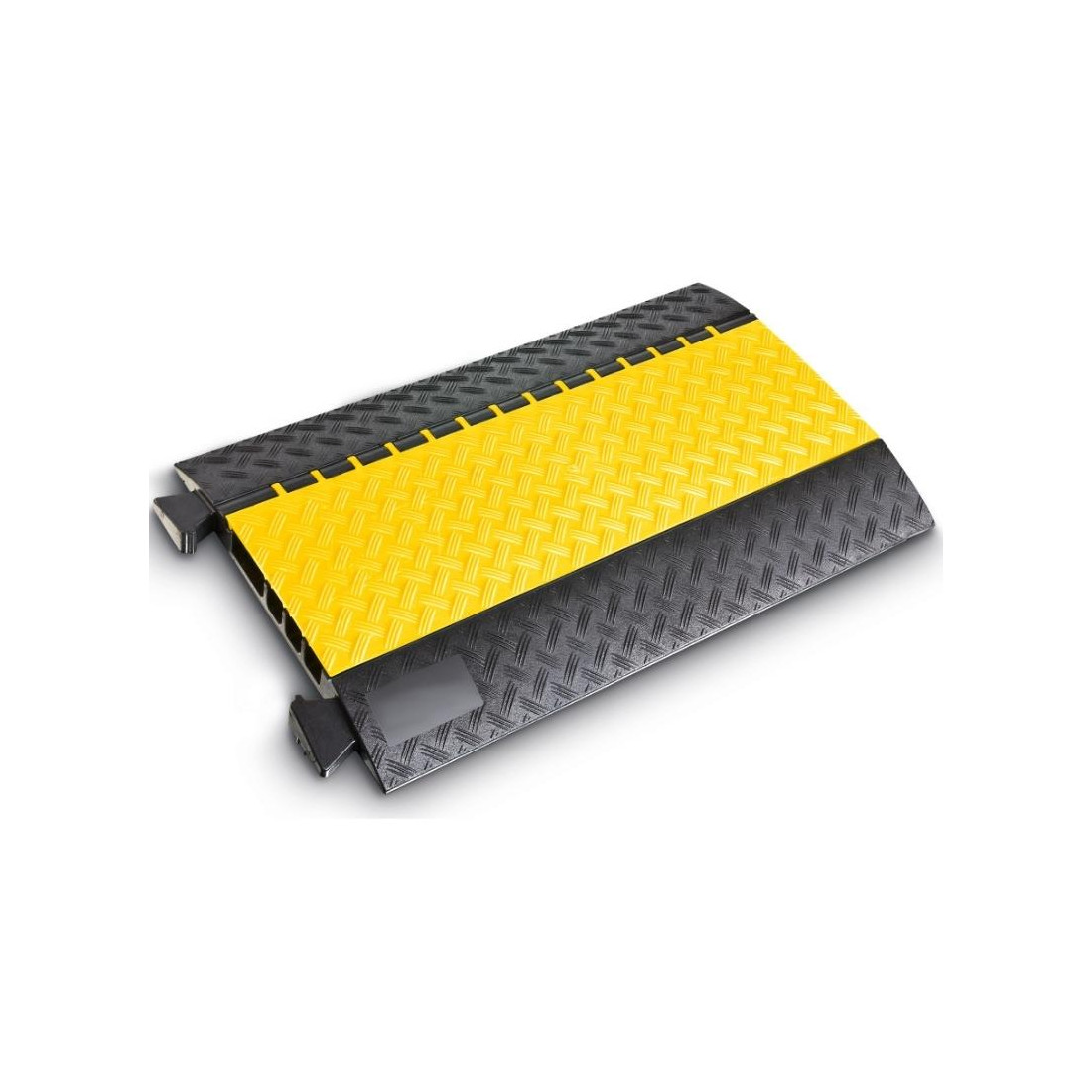

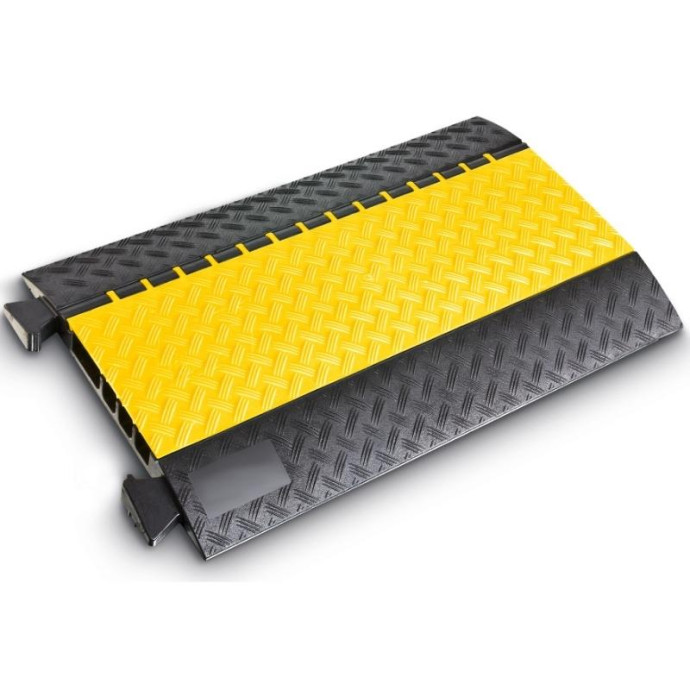

Cable grommet with 4 channels, 890x542x52mm

Available:

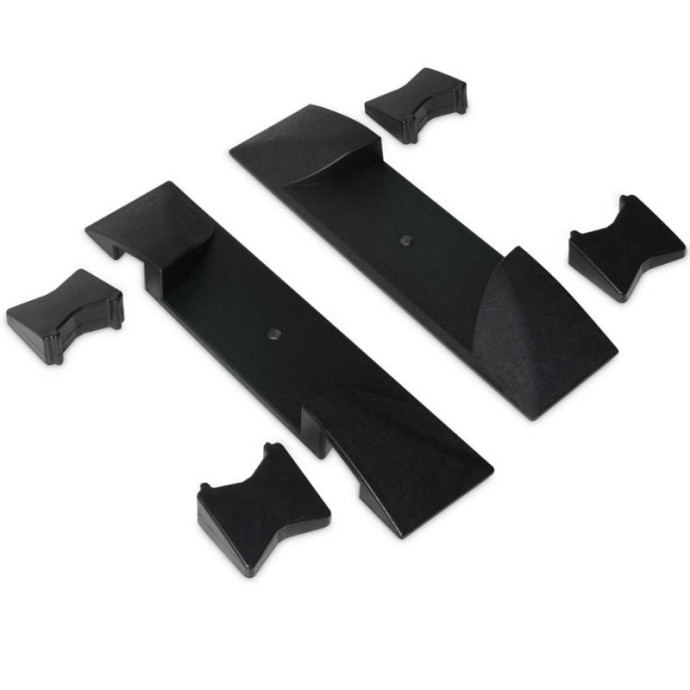

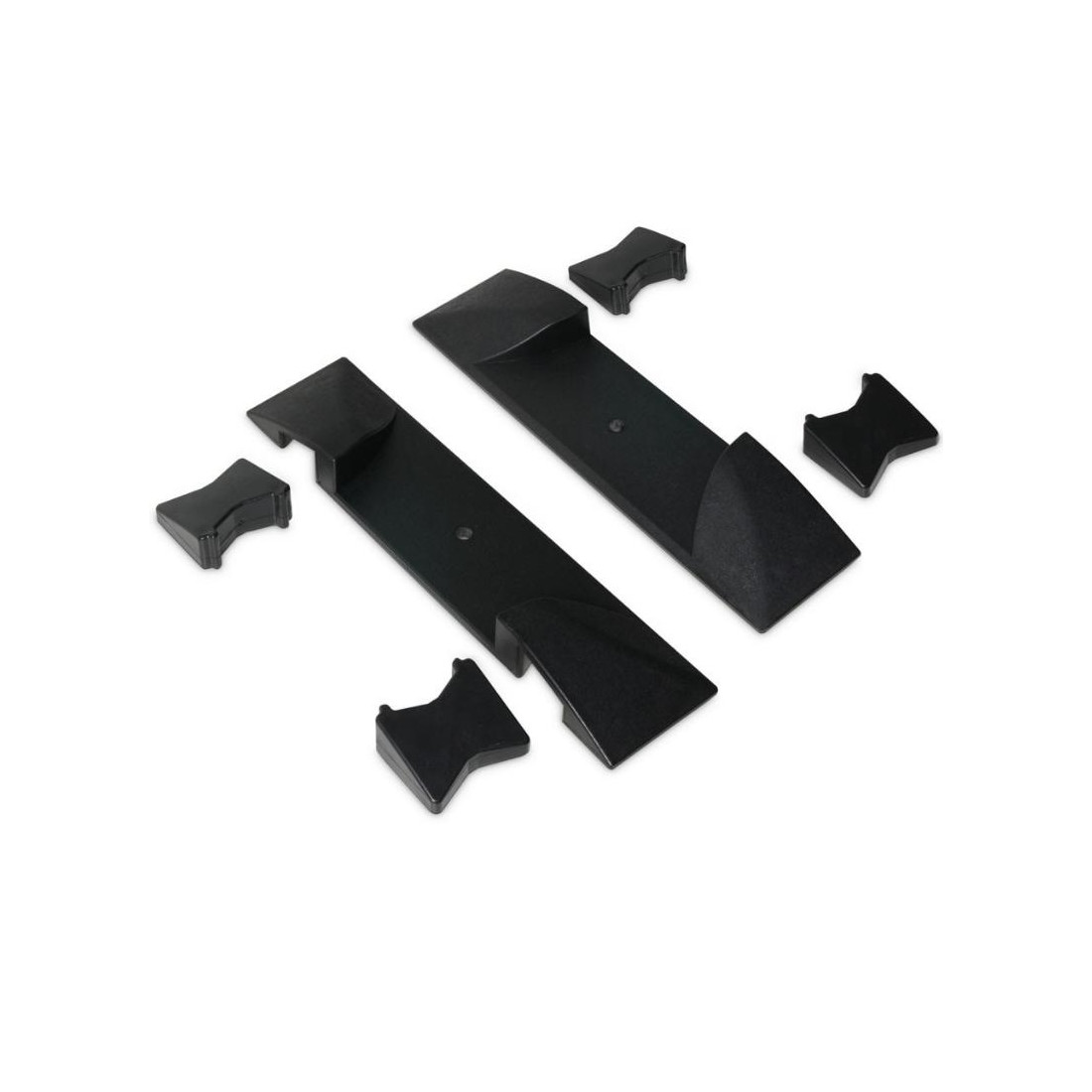

- Side termination Ref.310-0081

- Piece to make a 45º curve Ref. 310-0082

This model has 4 cable channels (one of them has double width than the others).

There is also the possibility of connecting two curved pieces with special pieces for this purpose, as well as terminations for the end or beginning of the lines.

SPECIFICATIONS:

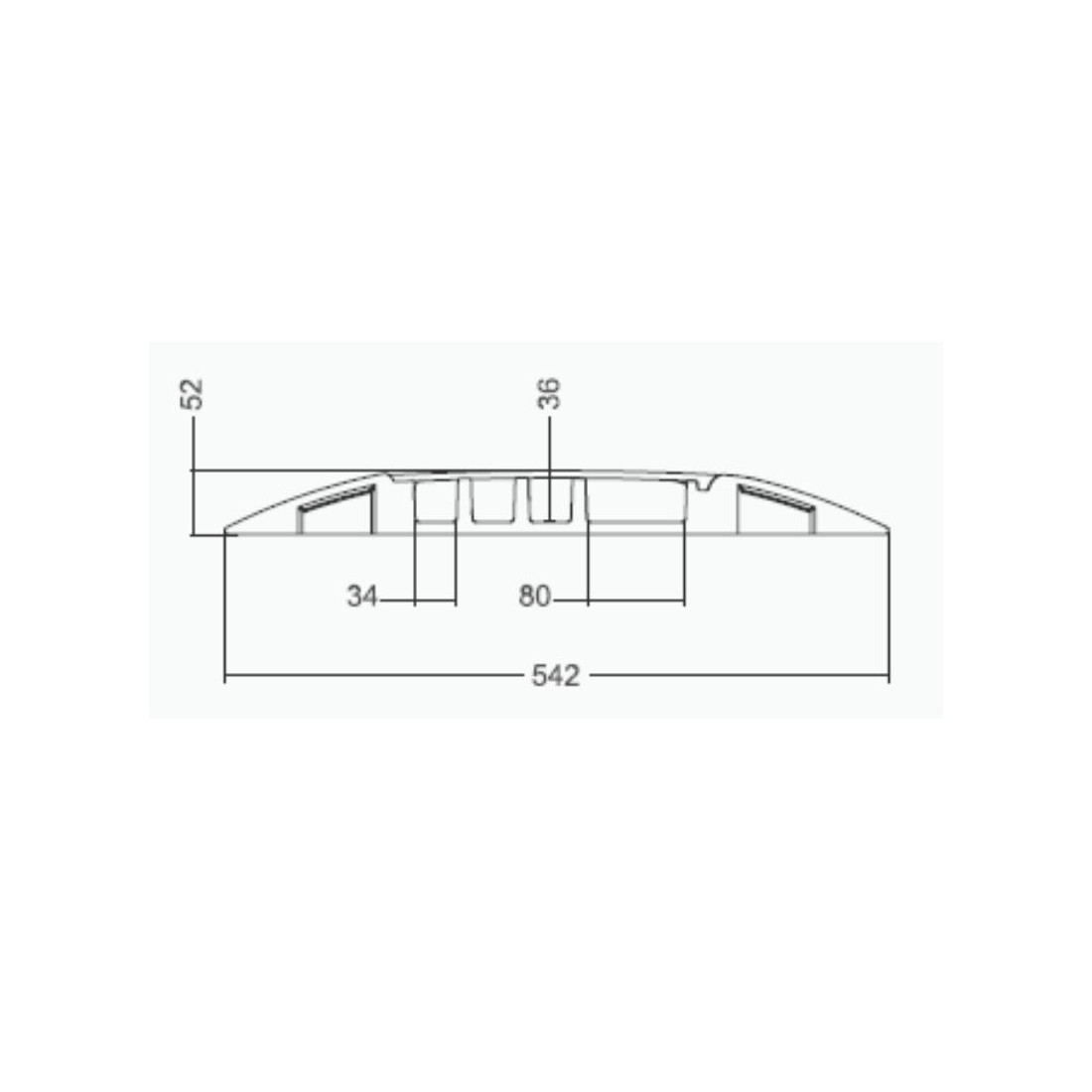

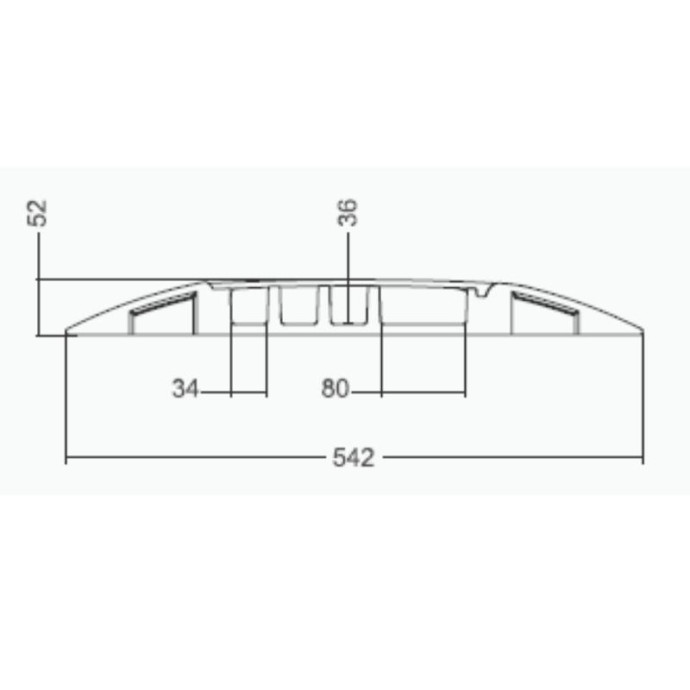

- Width and height of channels: 34 x 36 mm for channels 1 to 3 and 80 x 36 mm for channel 4

- Material: TPU (Thermoplastic Polyurethane)

- Shore A hardness: 88 ± 4 - Load resistance: Approx. 5t / 20 x 20 cm (standard tire footprint area)

- Fire resistance: B2 (B1 also available)

- Resistant to: Most acids, oils, and gasoline - Temperature: -30º to +60º C
