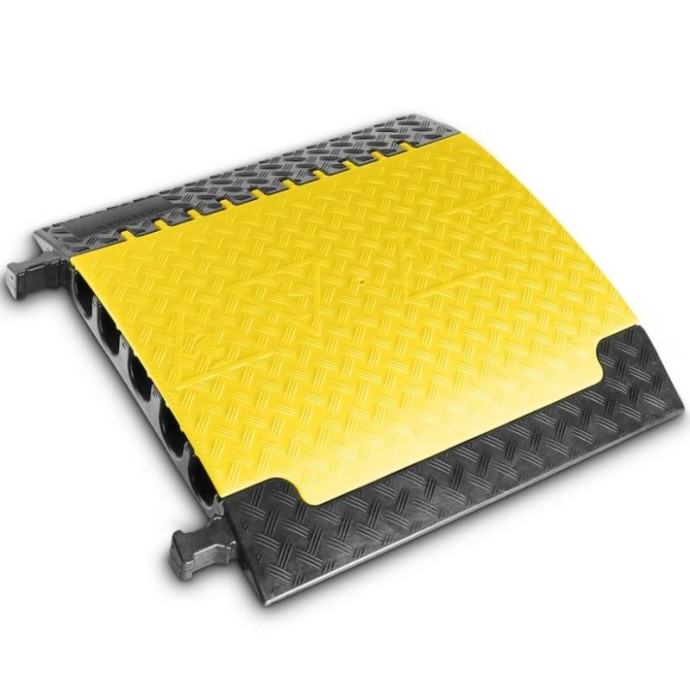

Cable protector with 5 channels, 700x690x87mm
Cable protector with 5 channels, 700x690x87mm
Cable protector with 5 channels, 700x690x87mm
Cable protector with 5 channels, 700x690x87mm
Cable protector with 5 channels, 700x690x87mm
Cable protector with 5 channels, 700x690x87mm
Cable protector with 5 channels, 700x690x87mm
Cable protector with 5 channels, 700x690x87mm

Cable protector with 5 channels, 700x690x87mm

310-0083

Measurements: Width 700 x Depth 690 x Height 87 mm

Material: Polyurethane

Color: Black with yellow lid

Fastening: Screws (NOT supplied)

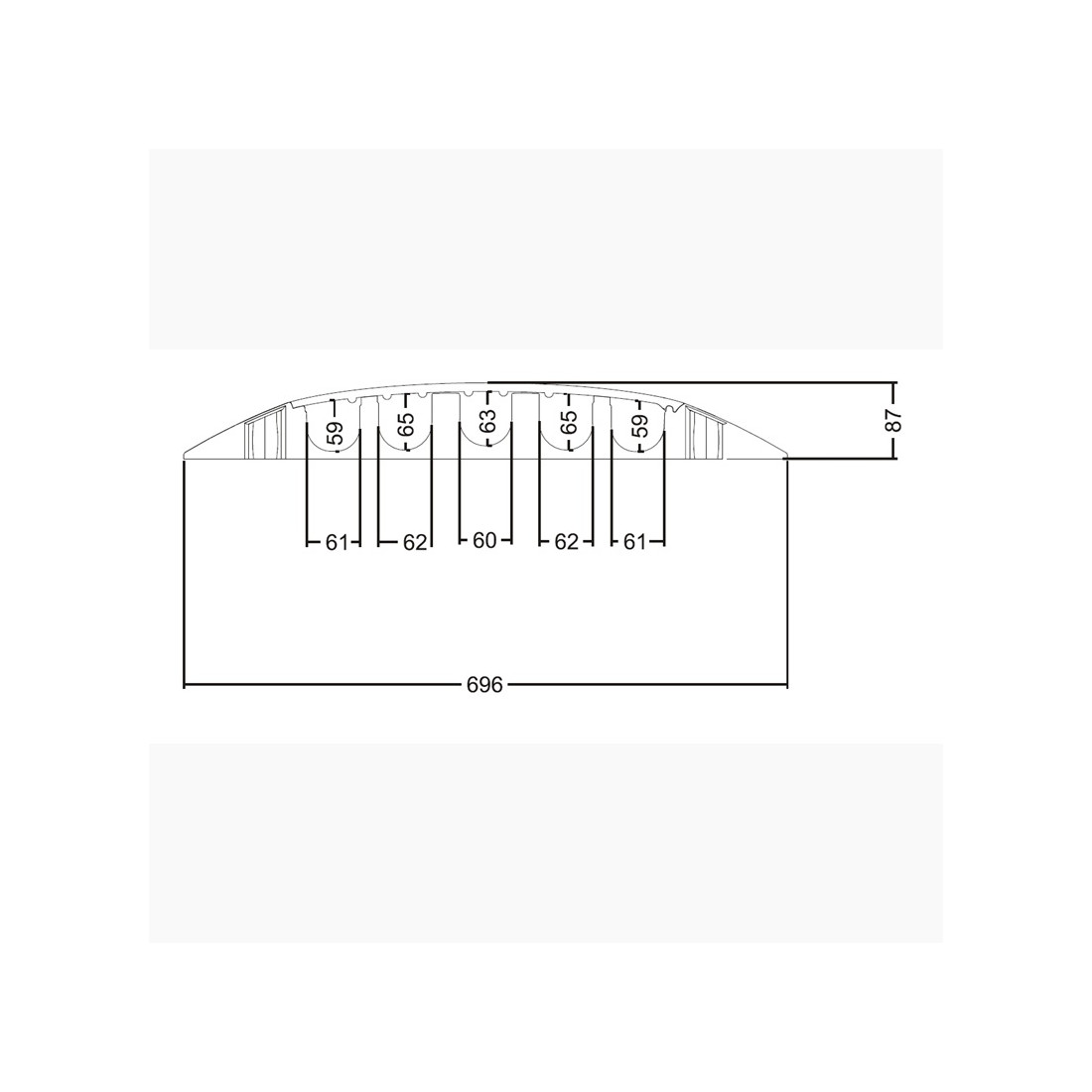

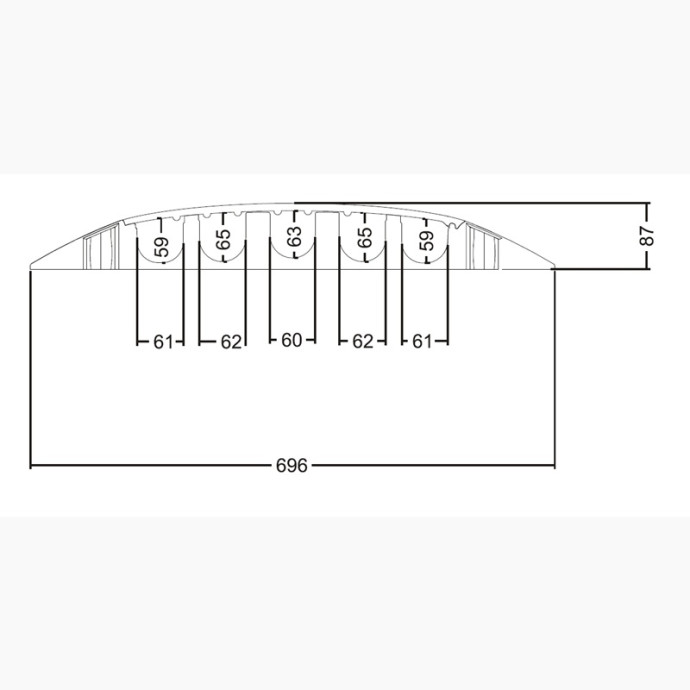

Gutter measurements: 61x59mm (gutter 1 and 5), 62x65mm (gutter 2 and 4), 60x63mm (gutter 3)



Available:

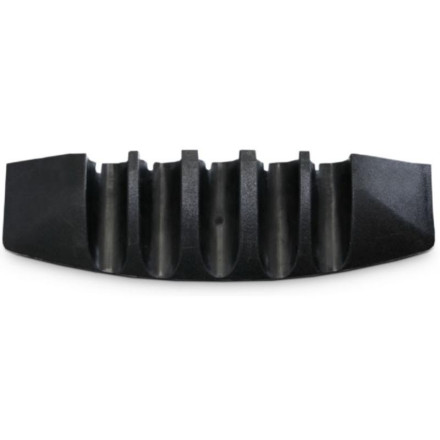

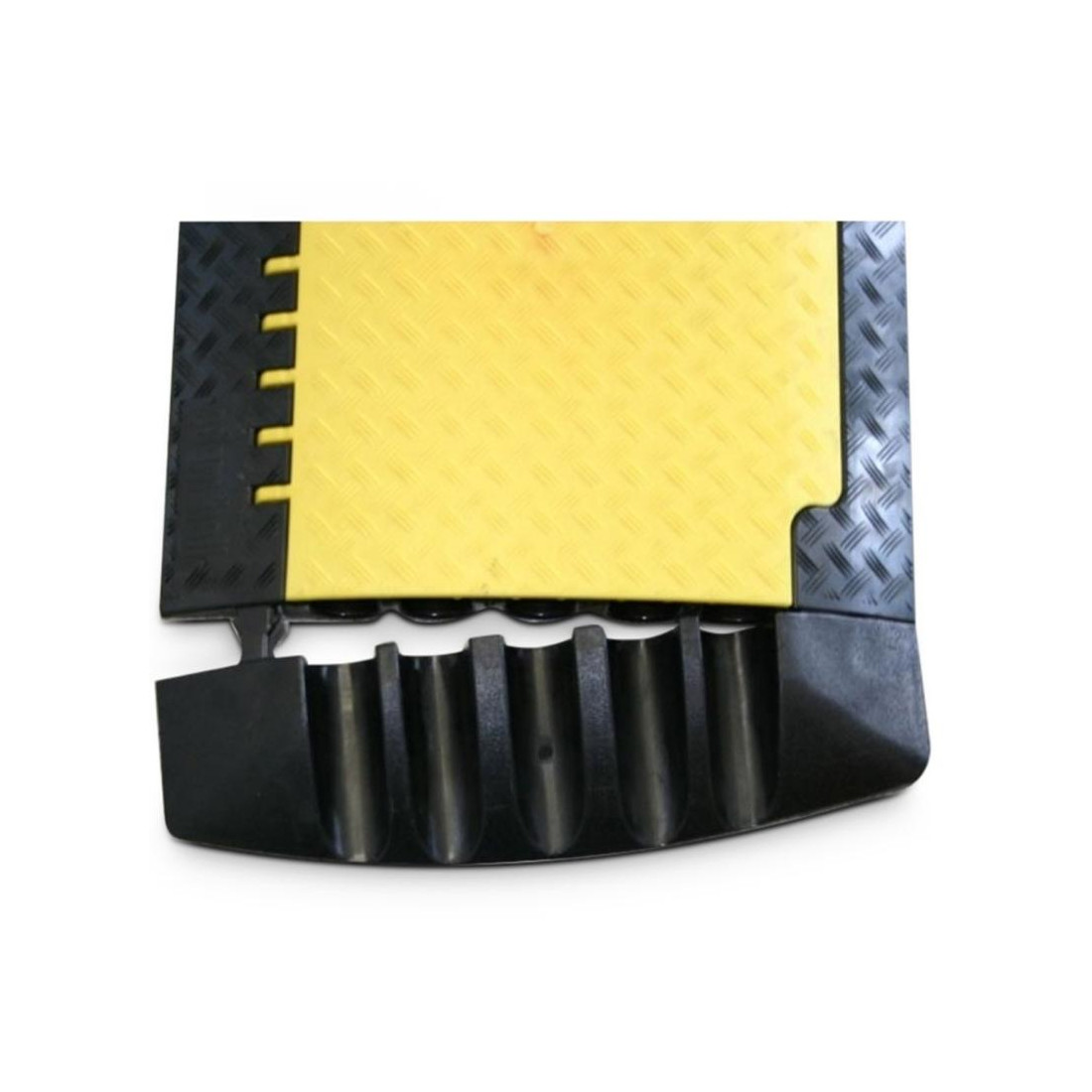

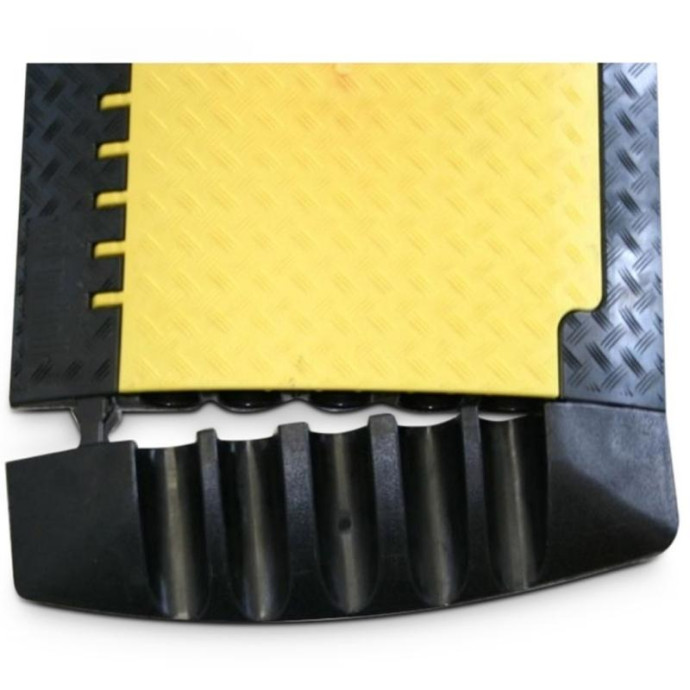

- Side termination Ref. 310-0084

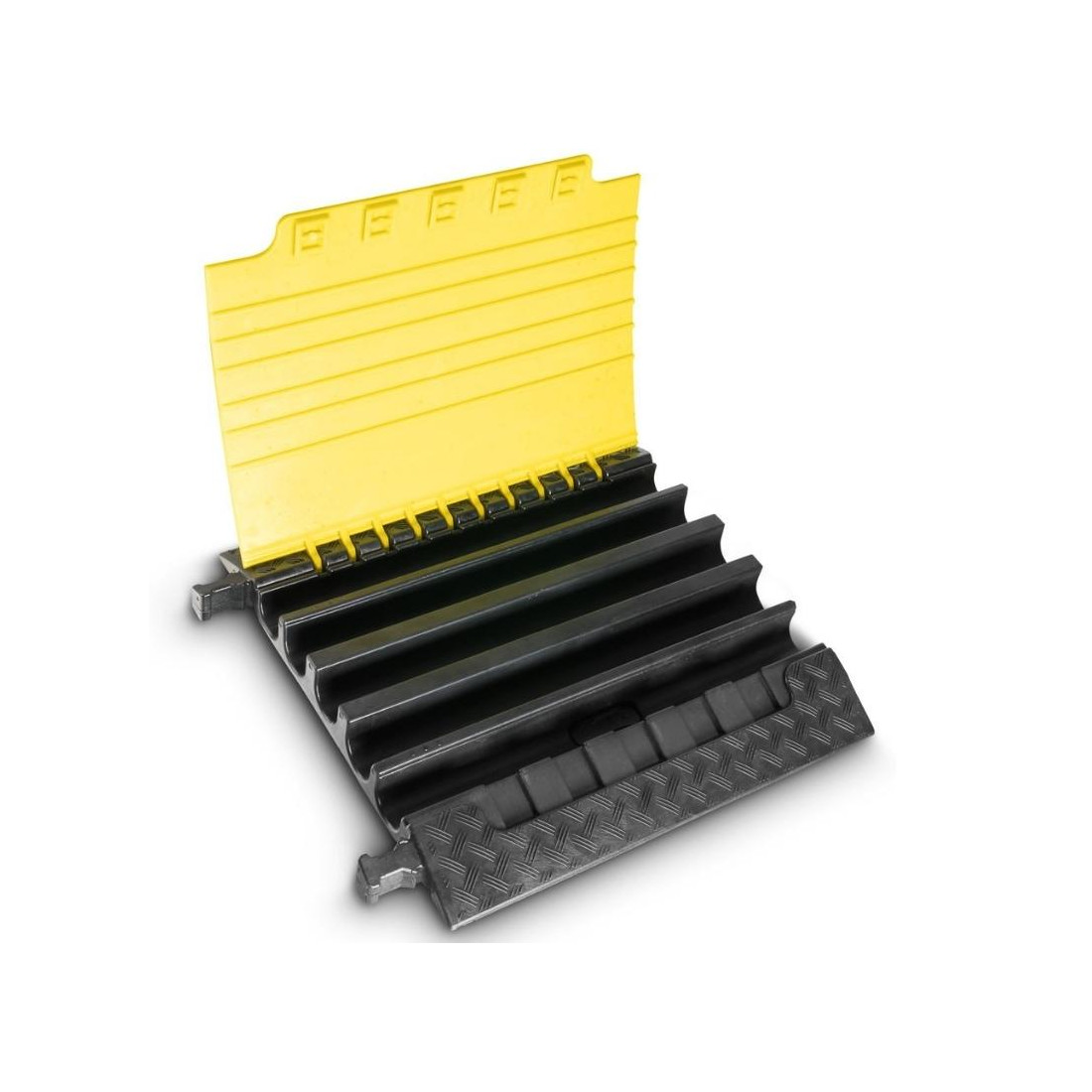

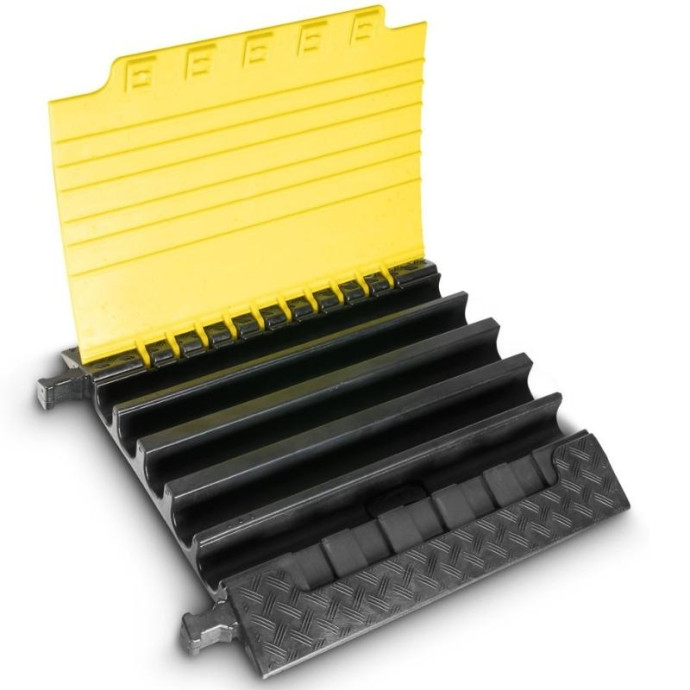

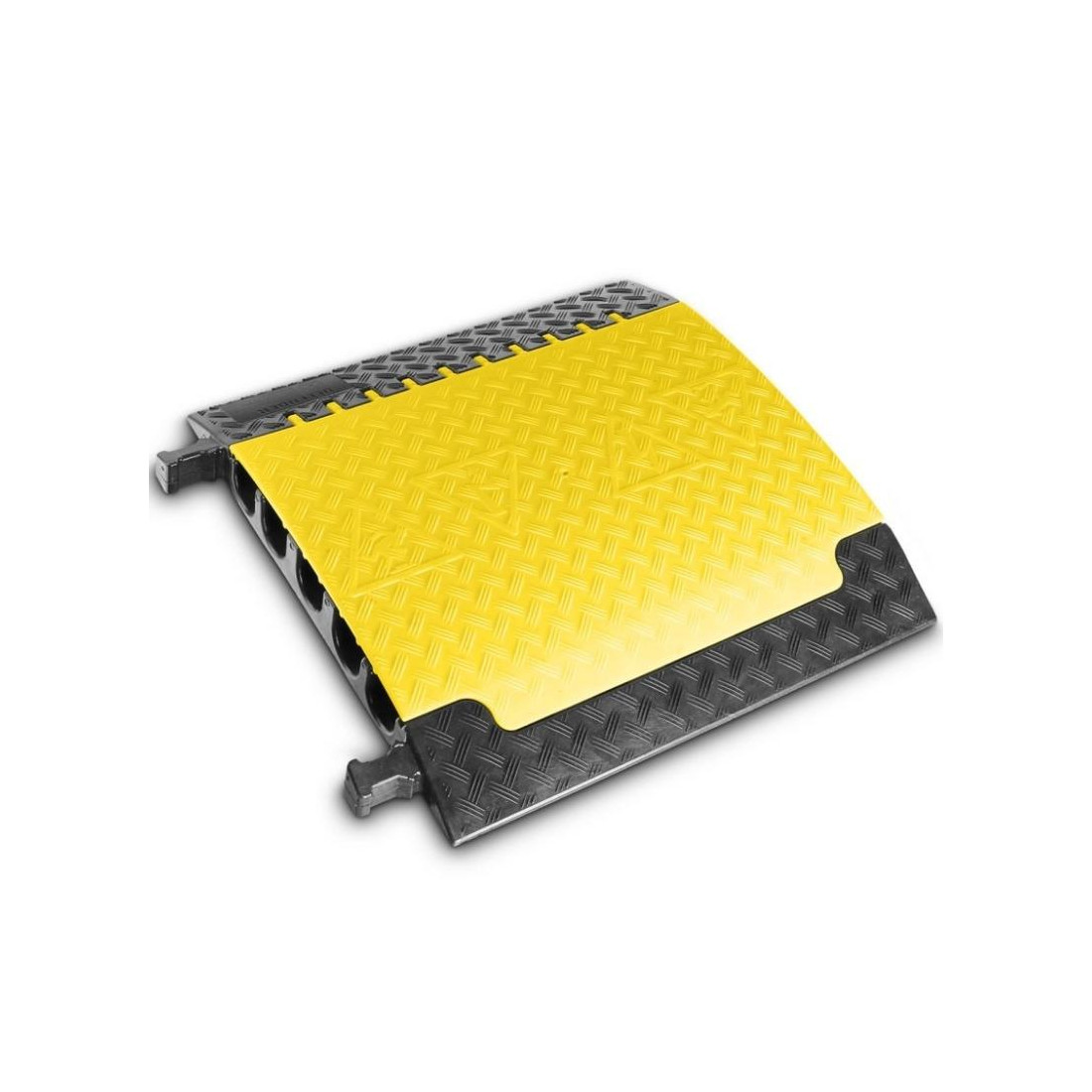

This cable protector model has 5 channels that provide great protection for power cables.

SPECIFICATIONS:

- Width and height of channels: 61 x 59 mm (channels 1 and 5), 62 x 65 mm (channels 2 and 4), 60 x 63 mm (channel 3)

- Material: TPU (Thermoplastic Polyurethane)

- Shore A hardness: 88 ± 4

- Load resistance: Approx. 5t / 20 x 20 cm (standard tire footprint area)

- Fire resistance: B2 (B1 also available)

- Resistant to: Most acids, oils, and gasoline - Temperature: -30º to +60º C
