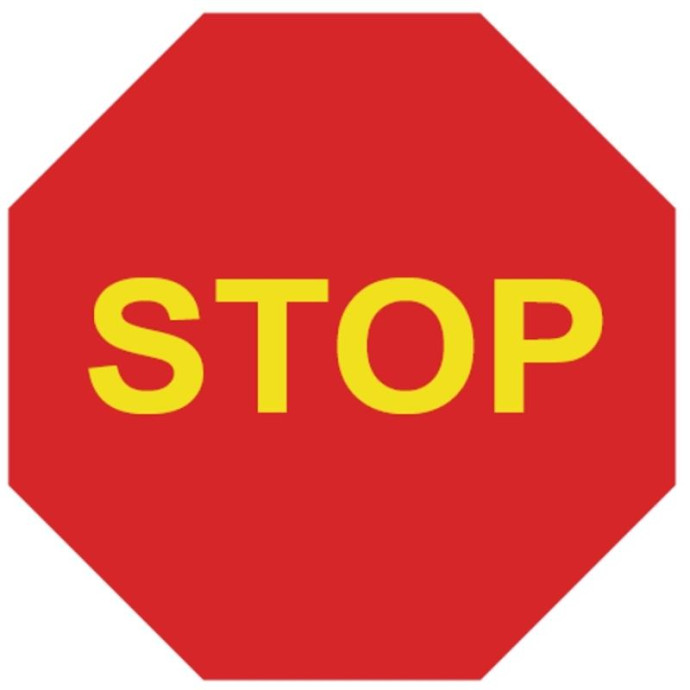

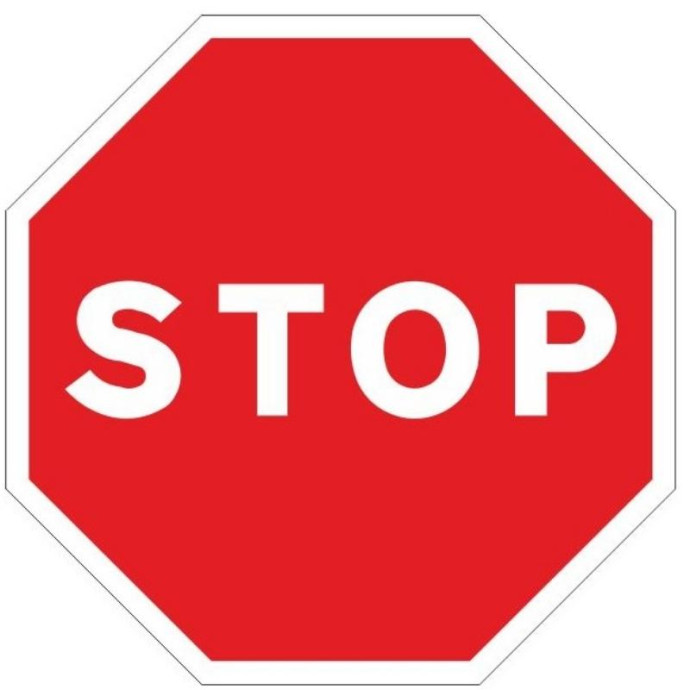

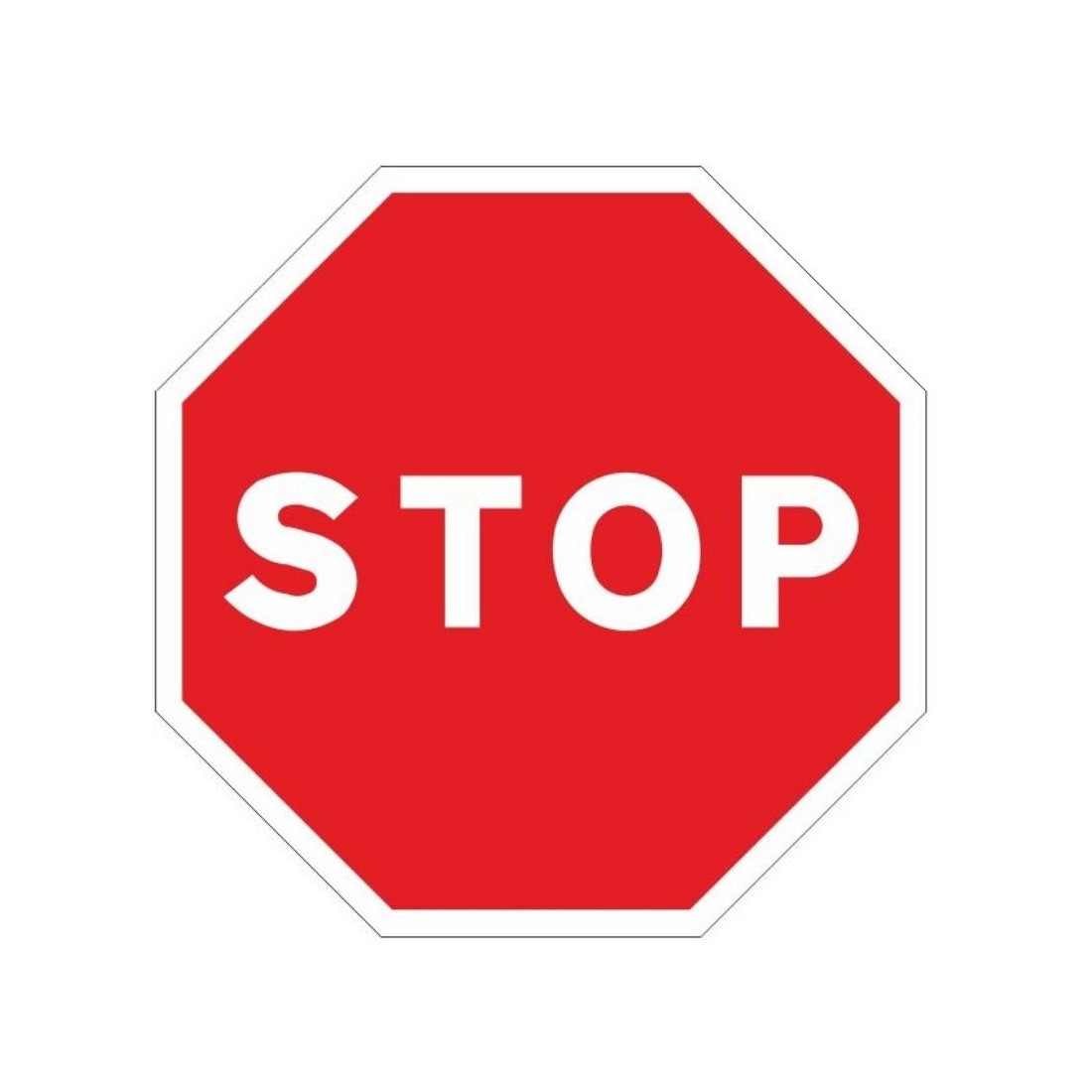

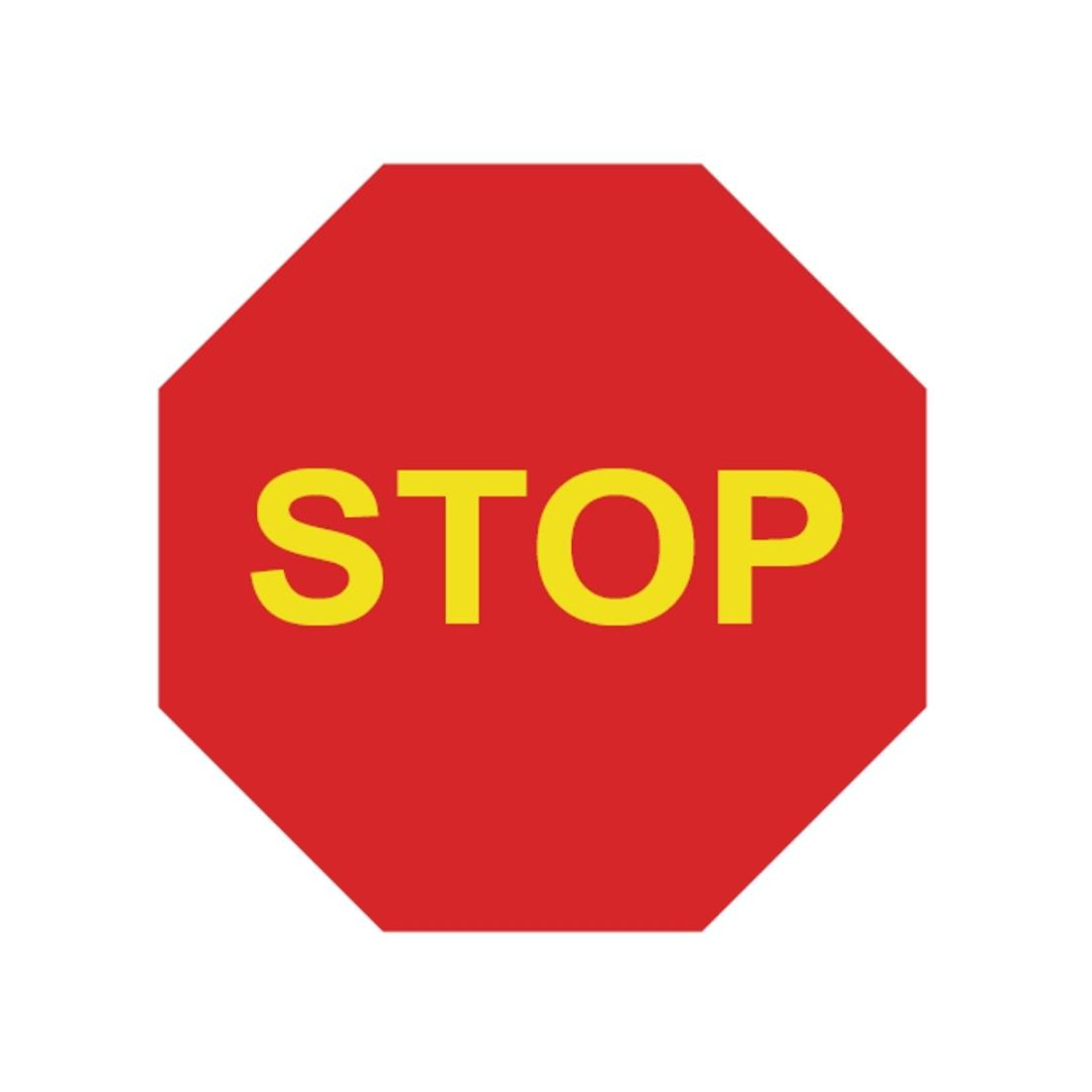

Octagonal sign in different sizes

Available in the following sizes and levels of reflectance

50 CM SIGNS (ECONOMIC):

- Ref. 340-0480: Without reflectance.

- Ref. 340-0481: Level I Reflectance

- Ref. 340-0482: Work sign with yellow background and Level I Reflectance.

60 CM SIGNS (MOPU):

- Ref. 340-0430: Without reflectance.

- Ref. 340-0431: Level I Reflectance

- Ref. 340-0432: Level II Reflectance

- Ref. 340-0433: Work sign with yellow background and Level I Reflectance.

Ø 90 CM SIGN (MOPU):

- Ref. 340-0435: Level I Reflectance

- Ref. 340-0436: Level II Reflectance

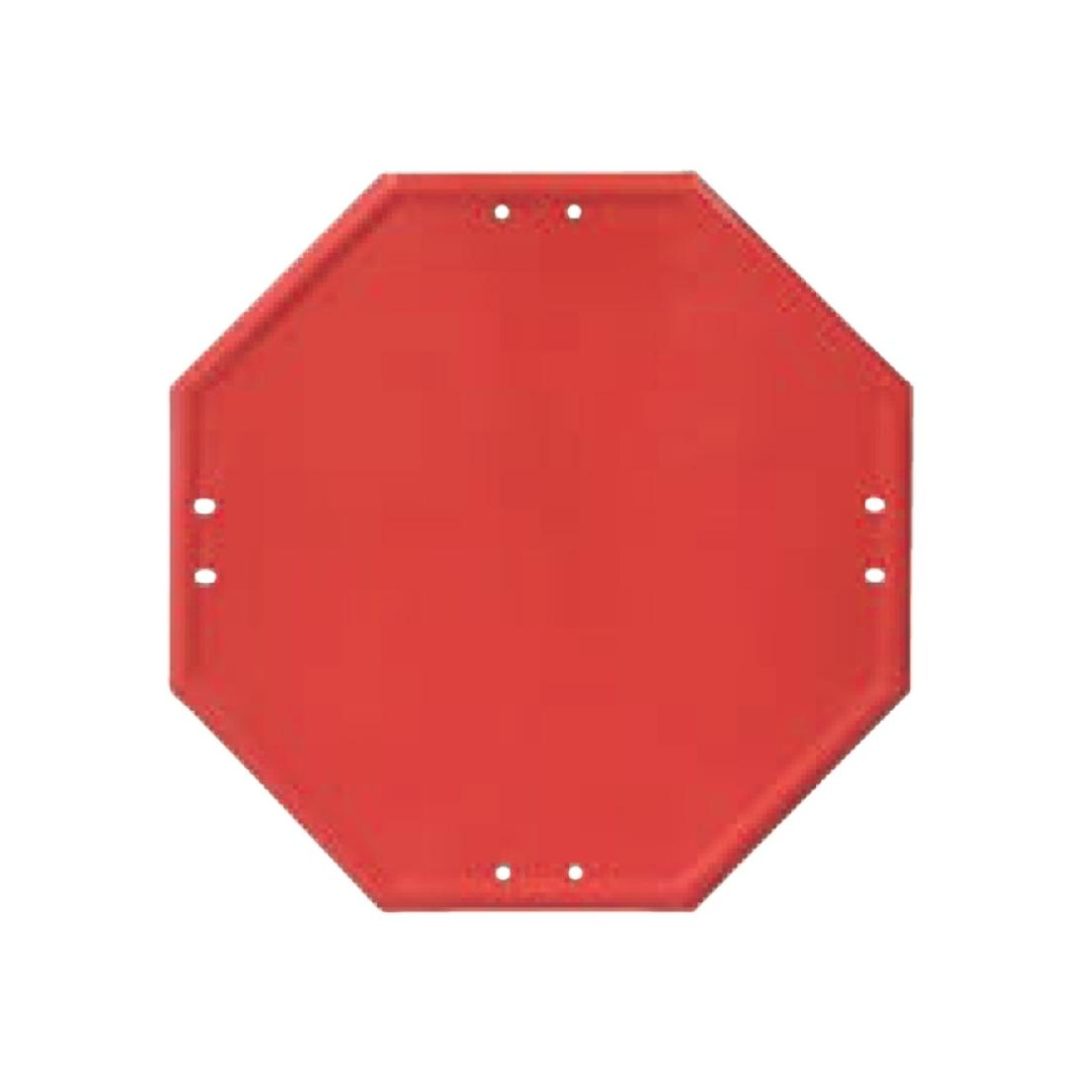

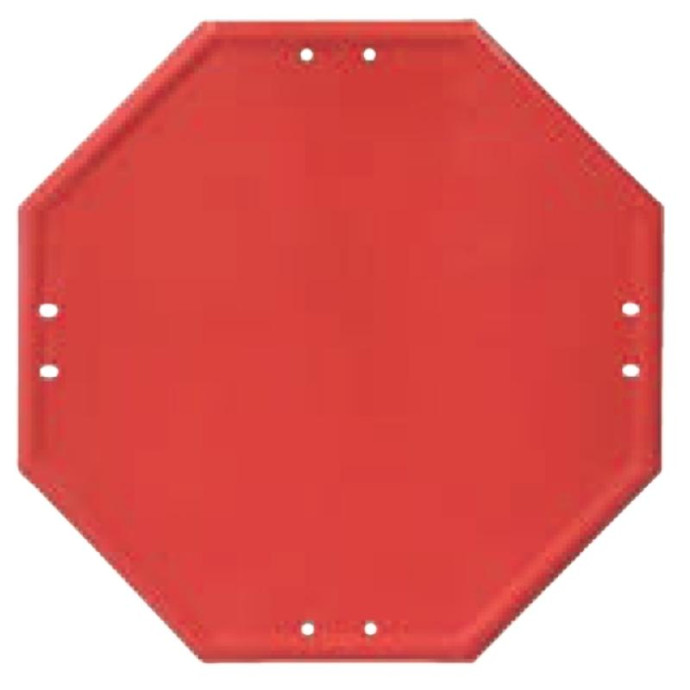

Signs with lacquered background on both sides and vinyl with different levels of reflectance on the front face.

Made of 1.8 mm thick galvanized steel sheet for MOPU signs and 0.8 for ECONOMIC signs, according to UNE 10204 3.1.b. EUR Standard, formed by stamping with a 25 mm perimeter flange.

They have standardized fastening for a 80 x 40 post. (screws and washers not included. If desired, request ref. 990-0247)

Cut with laser machinery and subsequent pressing with a 25mm perimeter flange. Alkaline multimetal degreasing and subsequent rinsing with osmosis water with a maximum conductivity of 0.65 micro. Subsequent powder paint application, free of TGIC, with good mechanical properties and UV resistance.

Manufactured to withstand extreme outdoor conditions

Oven-dried at a temperature of 200º C through a tunnel, achieving a high-quality finish and resistance to abrasion, impacts, and corrosion

Subsequent application of normal or reflective vinyl with CE certification of product for retroreflective sheets to be used in vertical traffic signs. Class RA1, RA2, or RA3 vinyl complies with EN 12899-1:2007 standard
