340-0520

Available in different sizes

Material: Galvanized steel sheet, 1.8 mm thick for the MOPU and 0.8 mm thick for the ECONOMIC models

Color: White background with black border

Mounting: Screws (Not included) for a 80 x 40 mm post.



Available in the following sizes and levels of reflectance:

MOPU PANELS:

Ref. 340-0520: Complementary MOPU panel 40 x 20 cm. Without reflex.

Ref. 340-0521: Complementary MOPU panel 40 x 20 cm. Reflex level I.

Ref. 340-0522: Complementary MOPU panel 40 x 20 cm. Work reflex level I.

Ref. 340-0523: Complementary MOPU panel 60 x 20 cm. Without reflex.

Ref. 340-0524: Complementary MOPU panel 60 x 20 cm. Reflex level I.

Ref. 340-0525: Complementary MOPU panel 60 x 20 cm. Work reflex level I.

Ref. 340-0526: Complementary MOPU panel 60 x 30 cm. Without reflex.

Ref. 340-0527: Complementary MOPU panel 60 x 30 cm. Reflex level I.

Ref. 340-0528: Complementary MOPU panel 60 x 30 cm. Work reflex level I.

Ref. 340-0529: Complementary MOPU panel 90 x 30 cm. Without reflex.

Ref. 340-0530: Complementary MOPU panel 90 x 30 cm. Reflex level I.

Ref. 340-0531: Complementary MOPU panel 90 x 30 cm. Work reflex level I.

ECONOMIC PANELS:

Ref. 340-0570: Complementary ECO panel 40 x 20 cm. Without reflex.

Ref. 340-0571: Complementary ECO panel 40 x 20 cm. Work reflex level I.

Ref. 340-0572: Complementary ECO panel 55 x 35 cm. Without reflex.

Ref. 340-0573: Complementary ECO panel 55 x 35 cm. Work reflex level I.

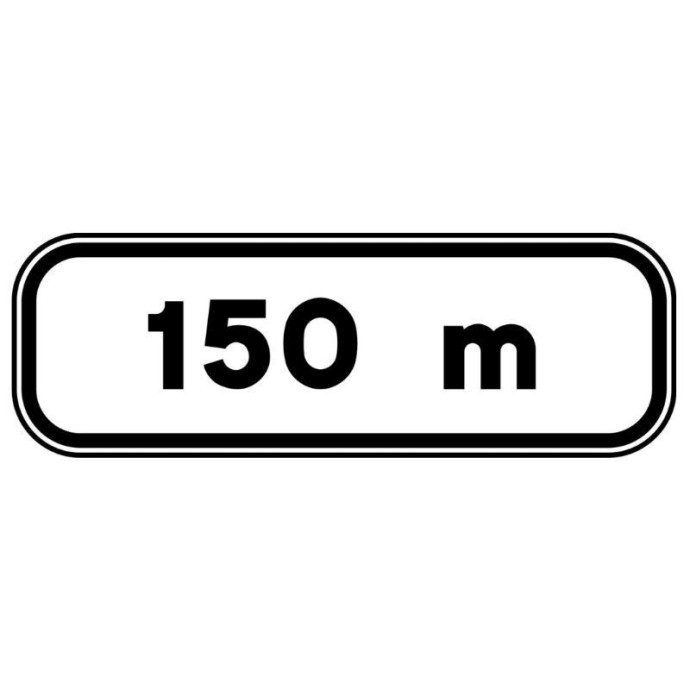

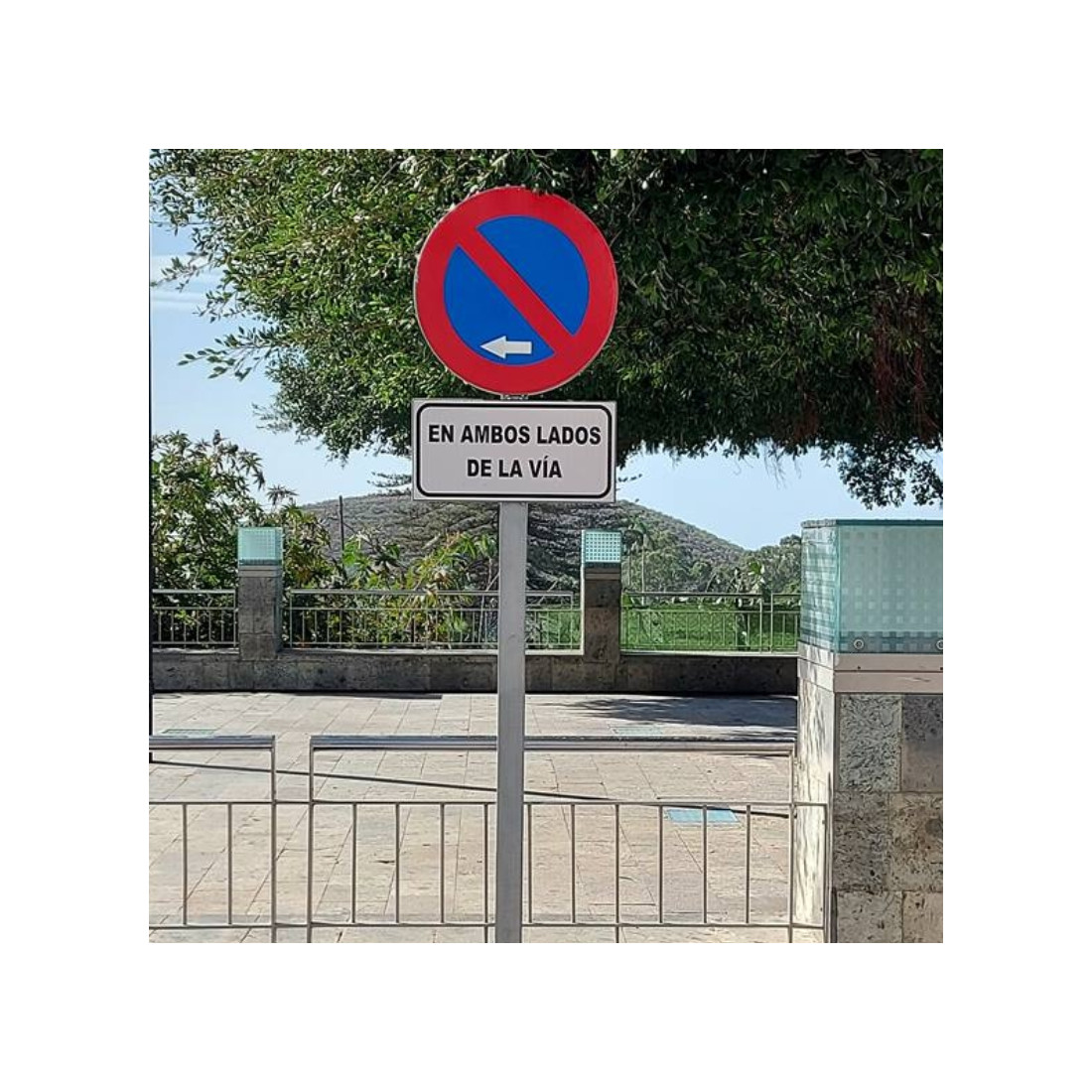

Galvanized rectangular MOPU complementary panel with rounded edges. Lacquered on both sides and vinyl with different levels of reflectance on the front face. White background color with black border.

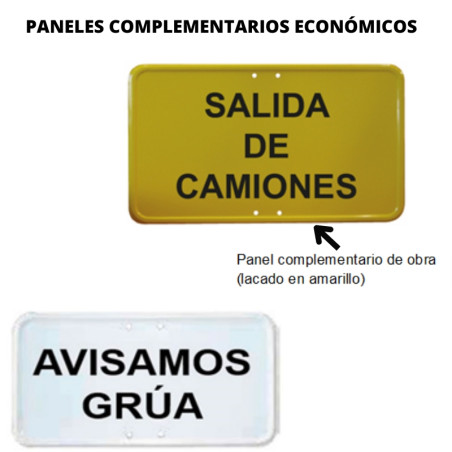

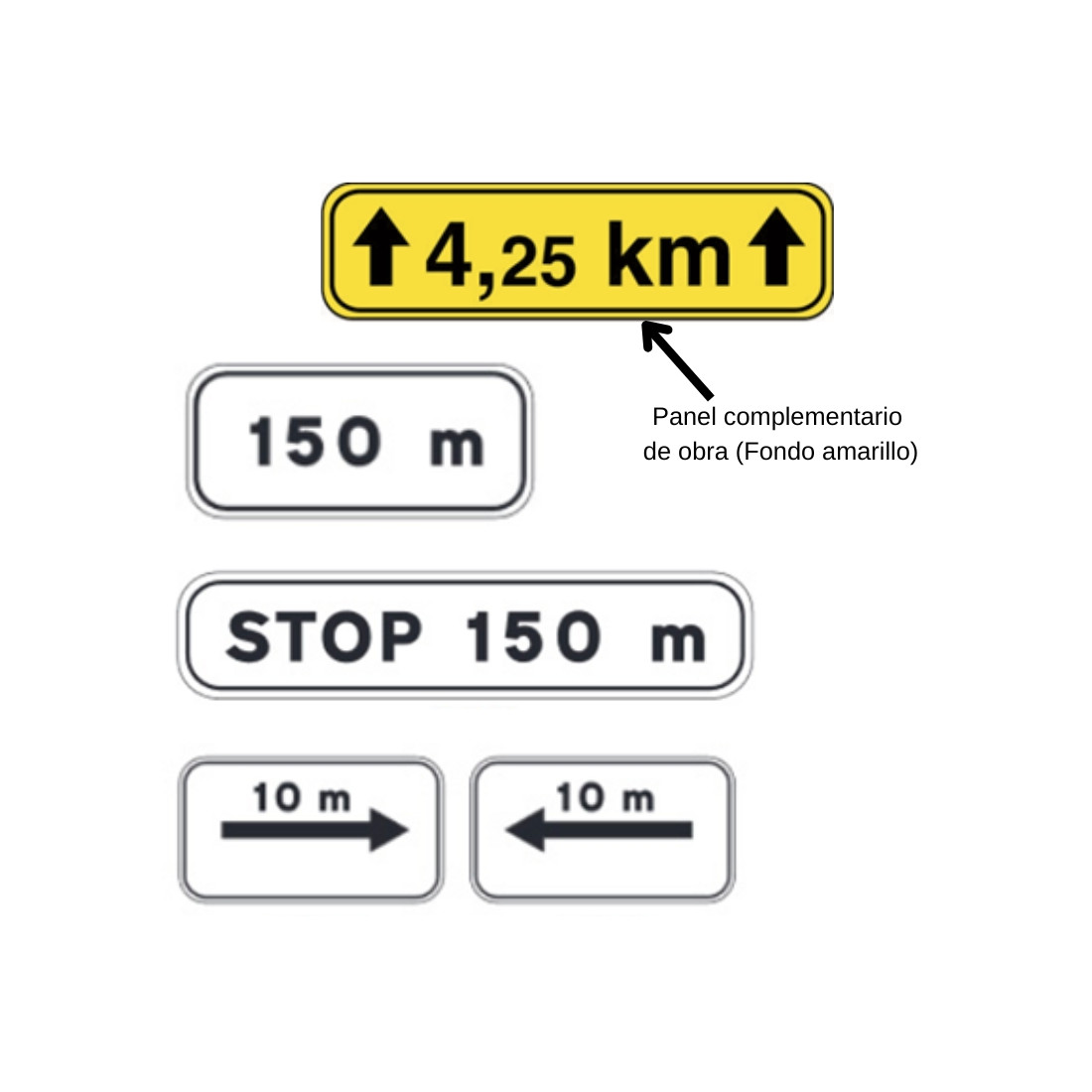

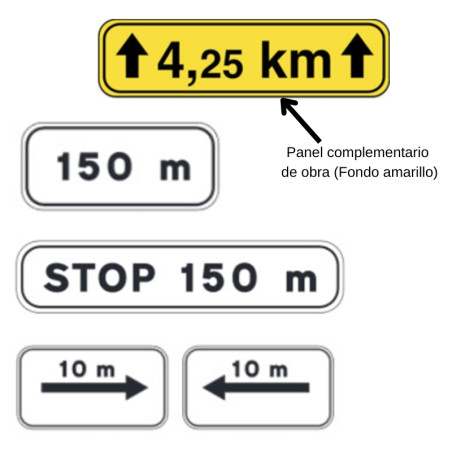

The work plates are lacquered in yellow.

Special design according to image provided by the client.

Made of galvanized steel sheet 1.8 mm thick for MOPU and 0.8 mm thick for Economic, according to Standard UNE 10204 3.1.b. EUR, formed by stamping with a 25 mm peripheral flange.

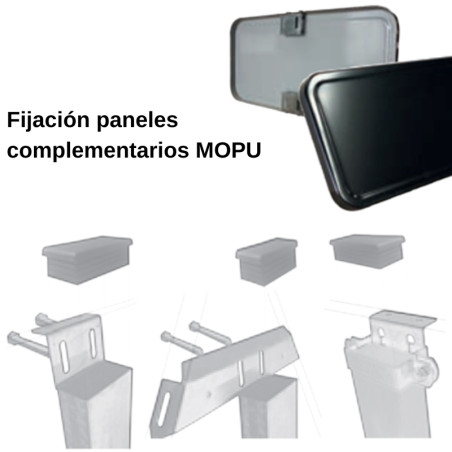

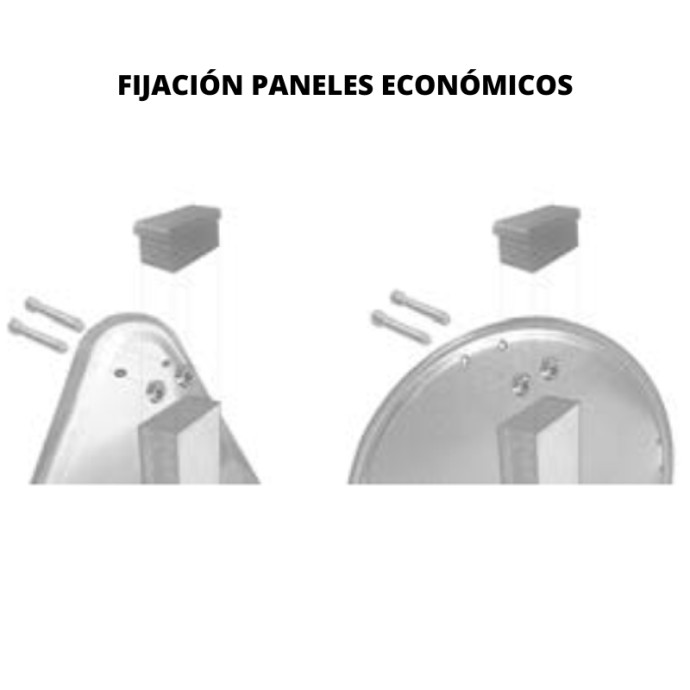

They have standardized fixation for a 80 x 40 post. (screws and washers not included. If desired, request ref. 990-0247).

Cut with laser machinery and subsequent pressing with a 25mm peripheral flange. Alkaline multimetal degreasing and subsequent osmosis water washing with maximum conductivity of 0.65 micro. Subsequent application of powder paint, free of TGIC, with good mechanical properties and UV resistance.

Manufactured to withstand extreme outdoor conditions.
