340-0020
€9.74
Tax included

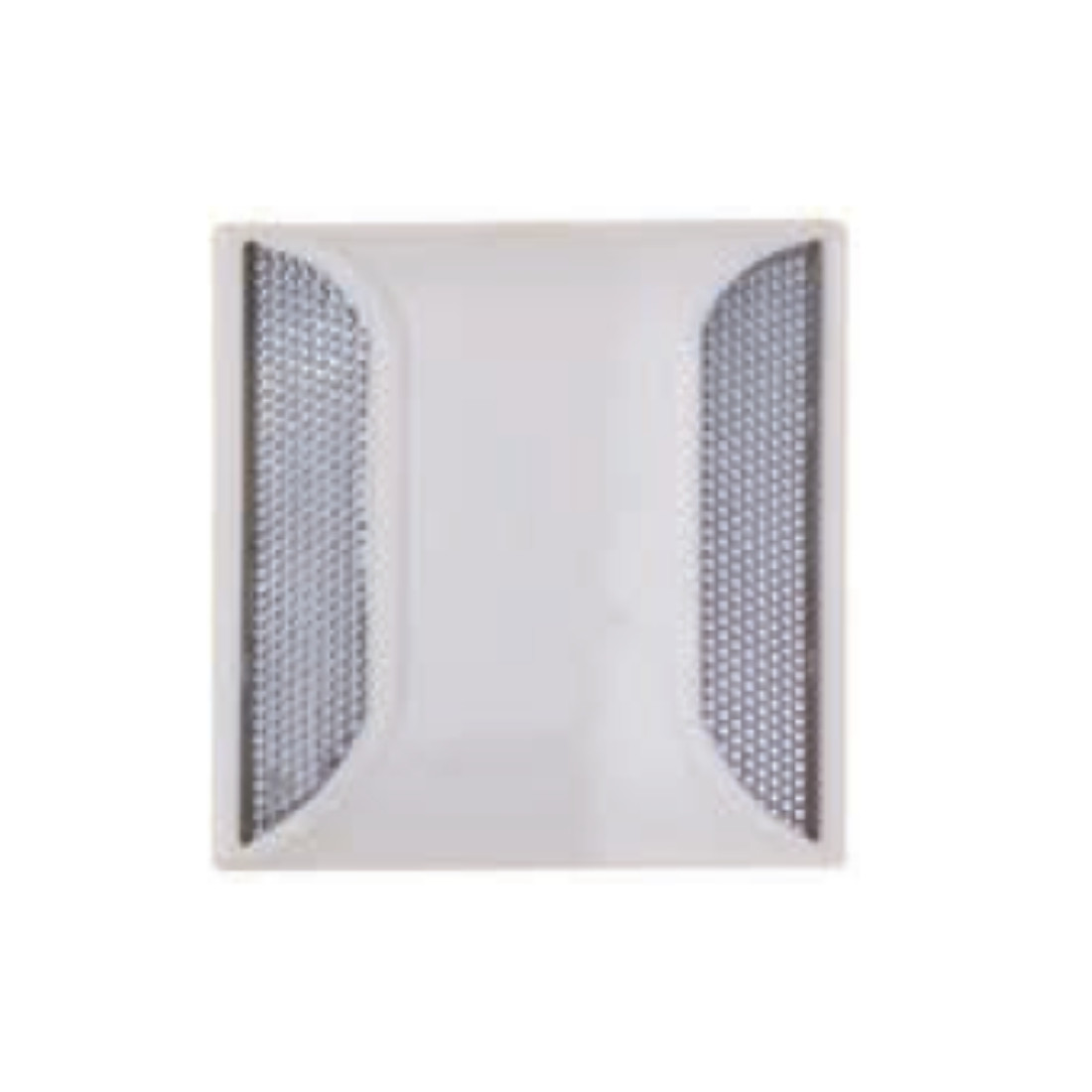

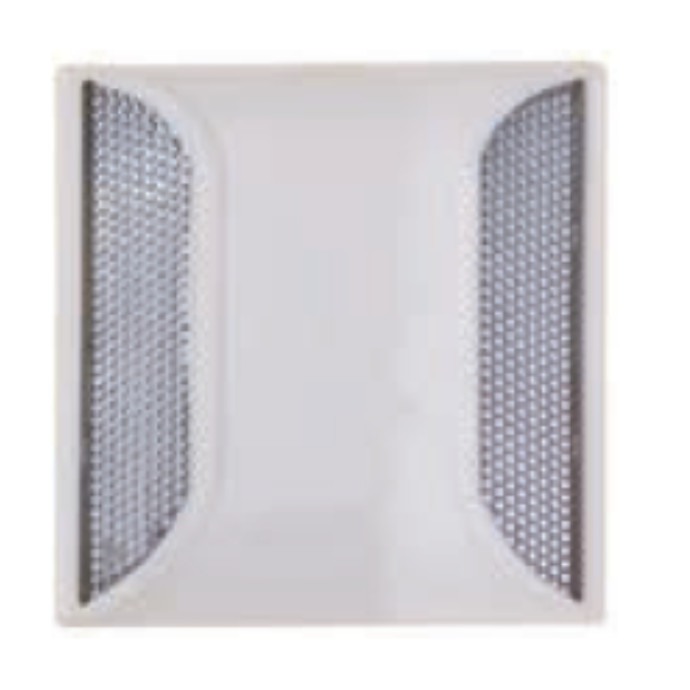

White cataphote with sandy base

Measurements: Length 100 x Width 100 x Height 18 mm

Reflectors with reflectance level 2 in different colors

Complies with standard UNE-EN-1463-1/A1:2004 CE Marked. (Certificate No. 0099/CPD/A72/2006)

Weight: 0.20 kg

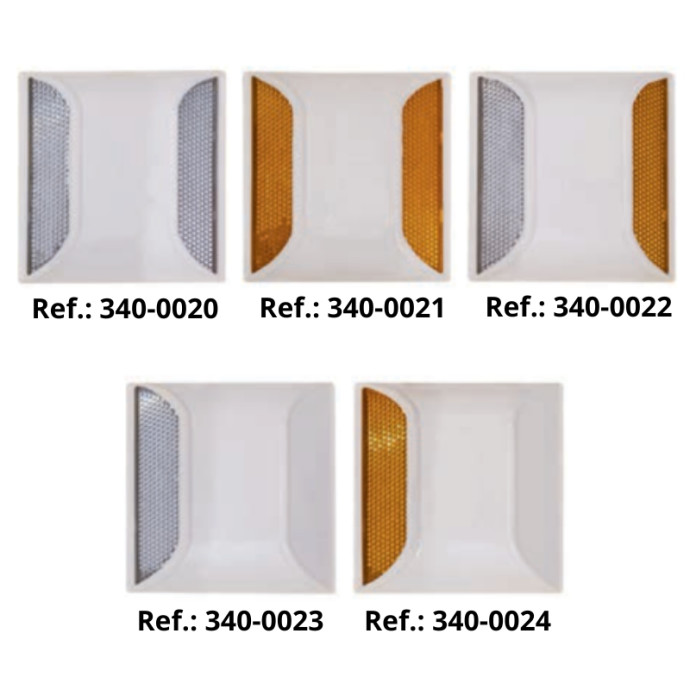

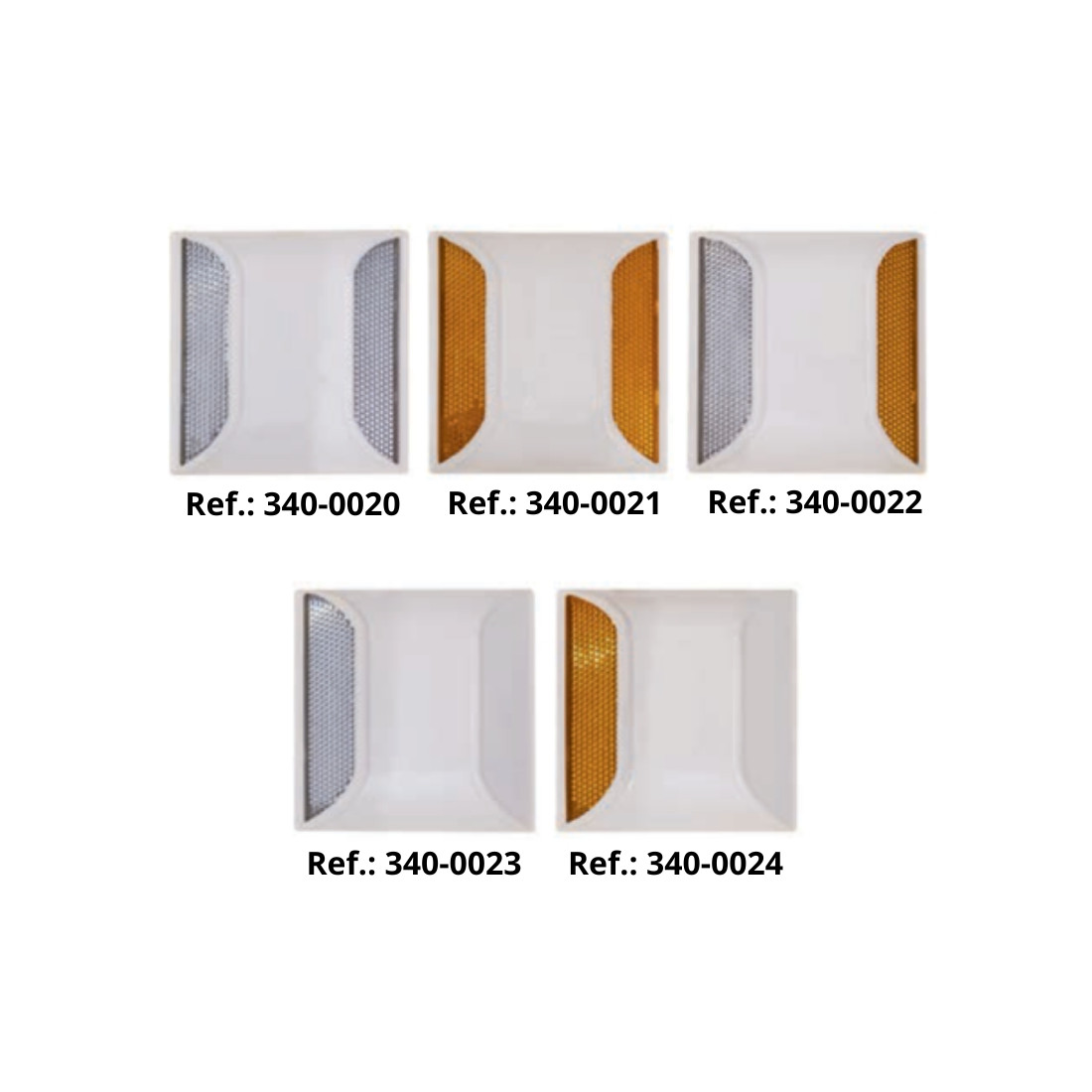

Available references:

- Ref. 340-0020: Double-sided Reflex White / White

- Ref. 340-0021: Double-sided Reflex Amber / Amber

- Ref. 340-0022: Double-sided Reflex White / Amber

- Ref. 340-0023: Single-sided Reflex White

- Ref. 340-0024: Single-sided Reflex Amber

Beacon made of highly resistant white plastic that includes a catadioptric and sandy base.

It is covered by a protective film that prevents scratching.

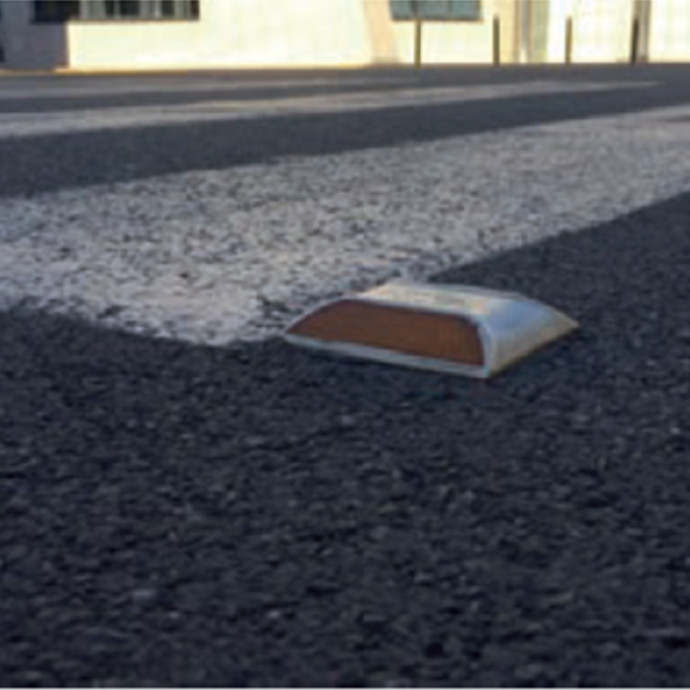

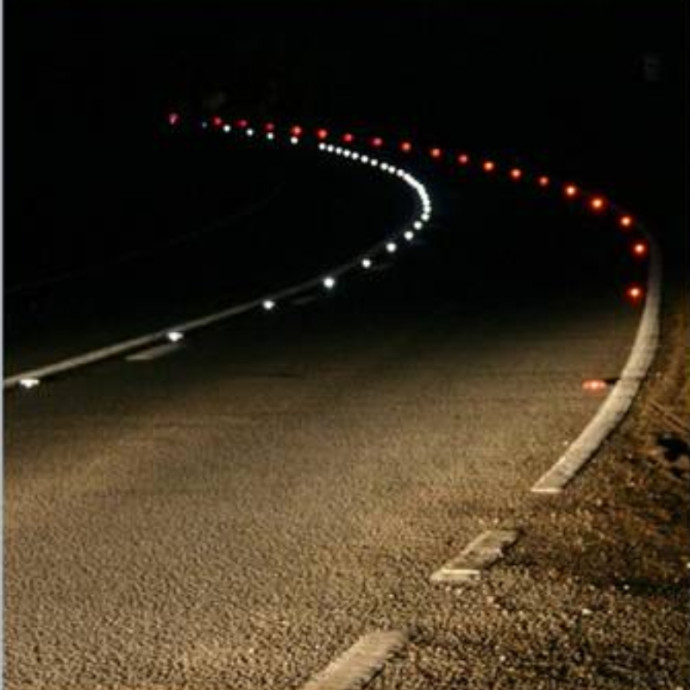

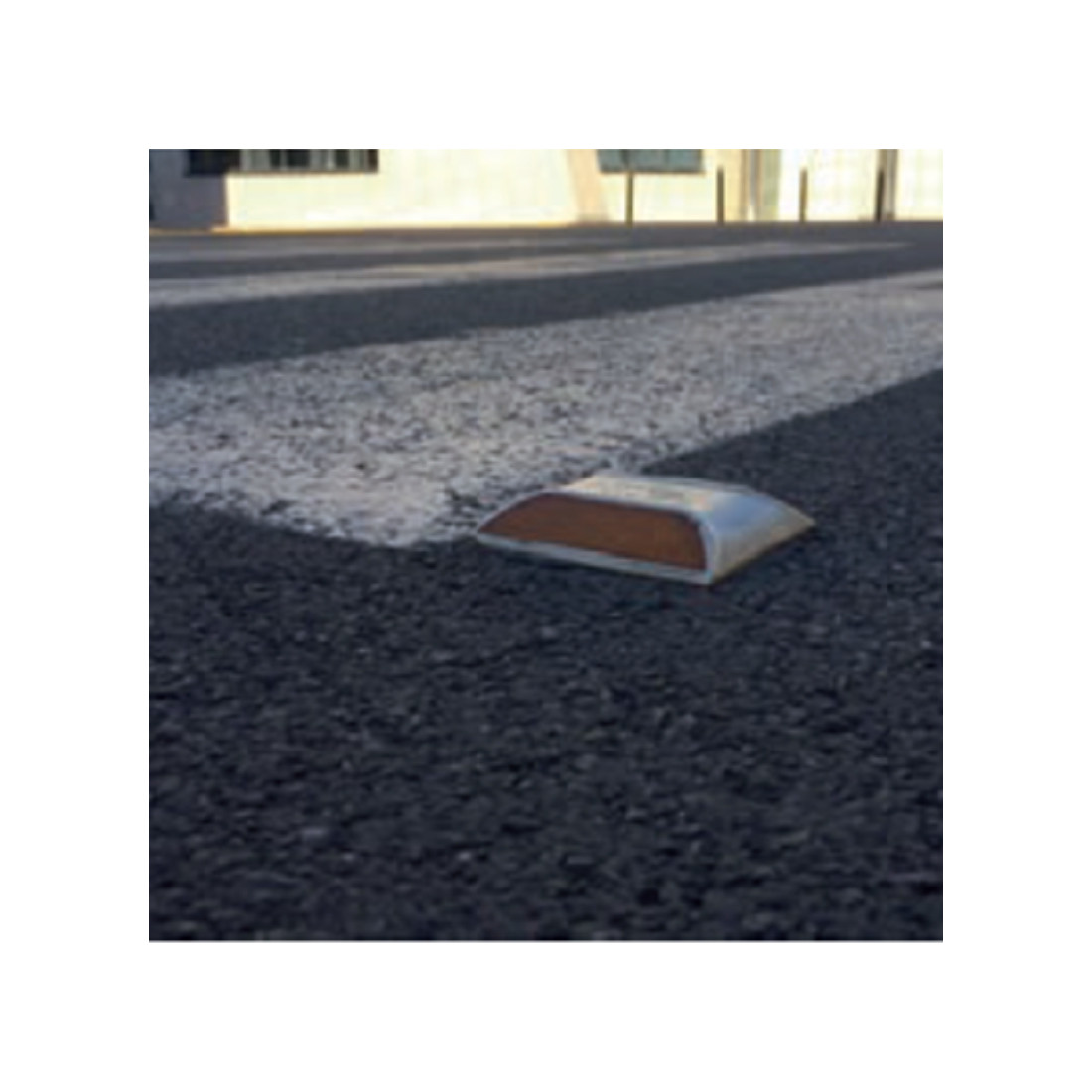

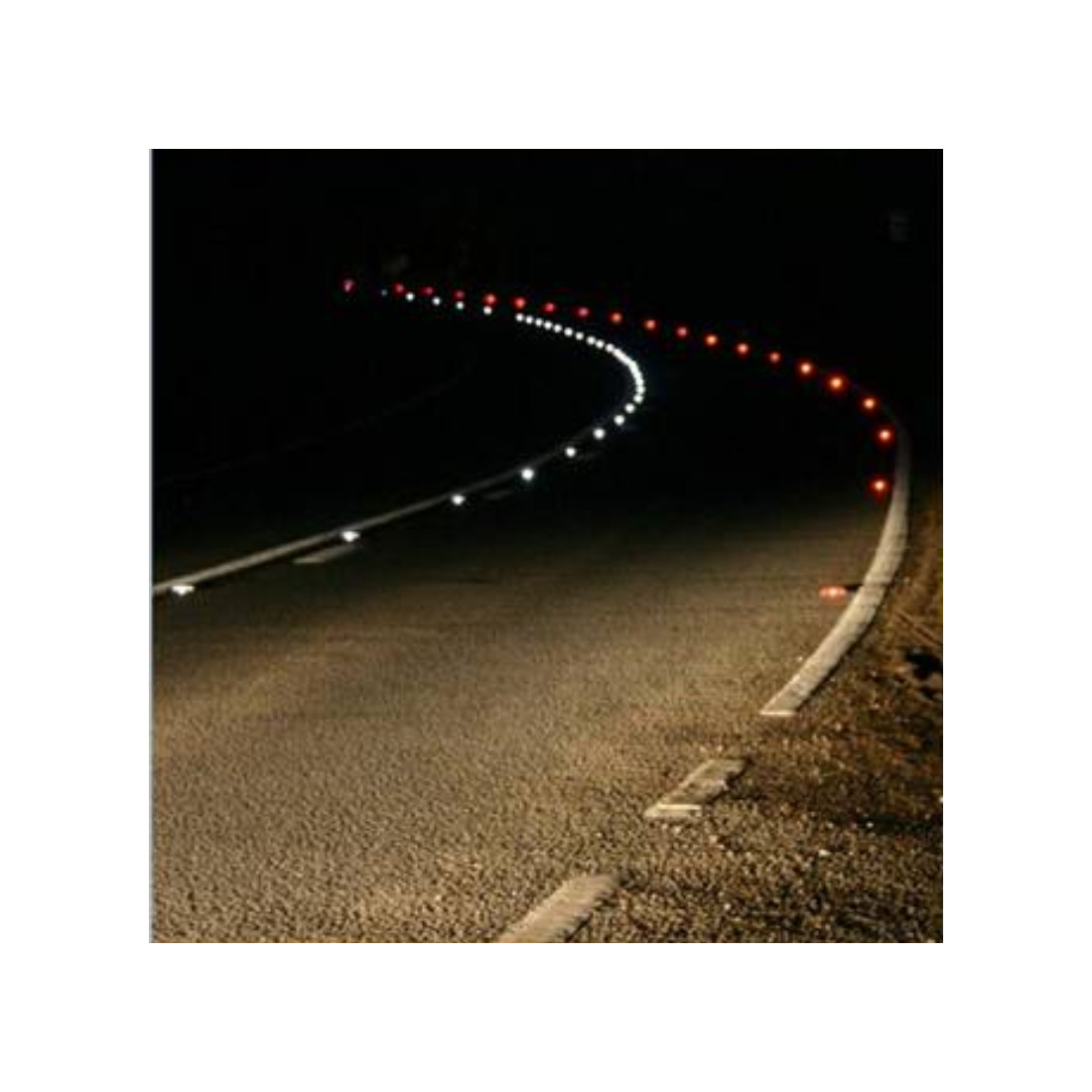

Road studs or beacons are designed to delimit various sections of the road under low visibility conditions, making them more visible by reflecting the vehicle's light on the product's catadioptrics.

Body: Made of high-impact ABS injected plastic

Reflectors: Injected in high retroreflective translucent acrylic plastic and high vacuum metalized. Luminosity 700cd/Lx. Reflectance level 2

Filling: Composed of high-impact resistant epoxy resins.

Base: Silica sand to ensure greater adherence to the surface. Glue savings

ASSEMBLY

It is done with a special glue under the following criteria*:

- Straight: every 25 m. on highways and every 15 m. on conventional roads.

- Curved: every 5-10 m. depending on the radius.

- Exits and entrances every 5-3 m.

*These criteria are indicative, as there is no standard setting these parameters, and the criteria of the Technical Management must be followed.

*For the installation of the beacons, the surface where it will be placed must be cleaned, free of dust and grease, apply the special glue for beacons, and then place the beacon on it to dry and harden. It is recommended to use one container of glue (2.5Kg) for every 14-16 beacons.
