340-009040

Available in different sizes

Material: Windsock: Polyamide crosshatch fabric, hydrophobic and resin-coated. Ring: Galvanized steel. Swivel: Stainless steel AISI 304

Color: White and red bands

For rotating swivel, use refs. 990-0254 / 990-0255



Available windsock measurements:

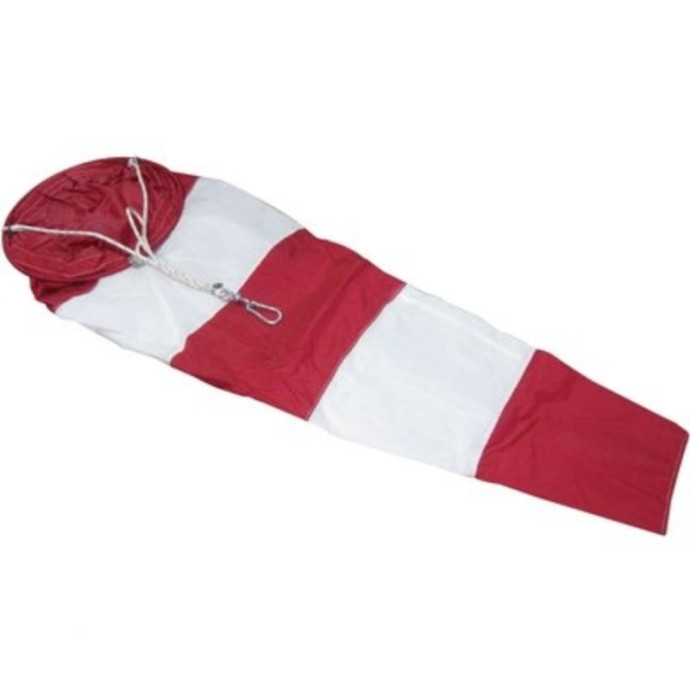

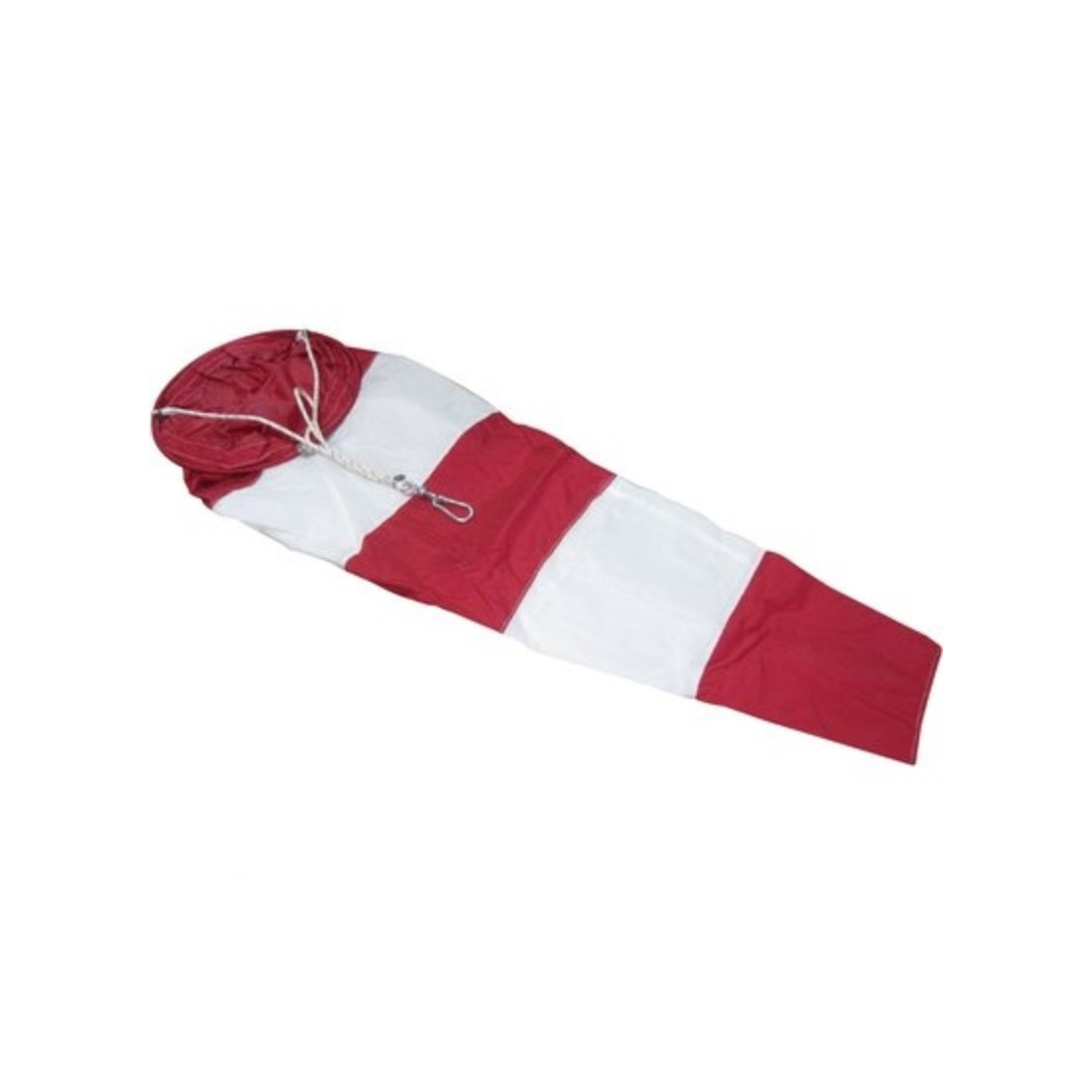

- Ref. 340-009040: Windsock with 400 mm ring. Length: 1600 mm

- Ref. 340-009060: Windsock with 600 mm ring. Length: 2400 mm

- Ref. 340-009085: Windsock with 850 mm ring. Length: 3000 mm

Available joints measurements:

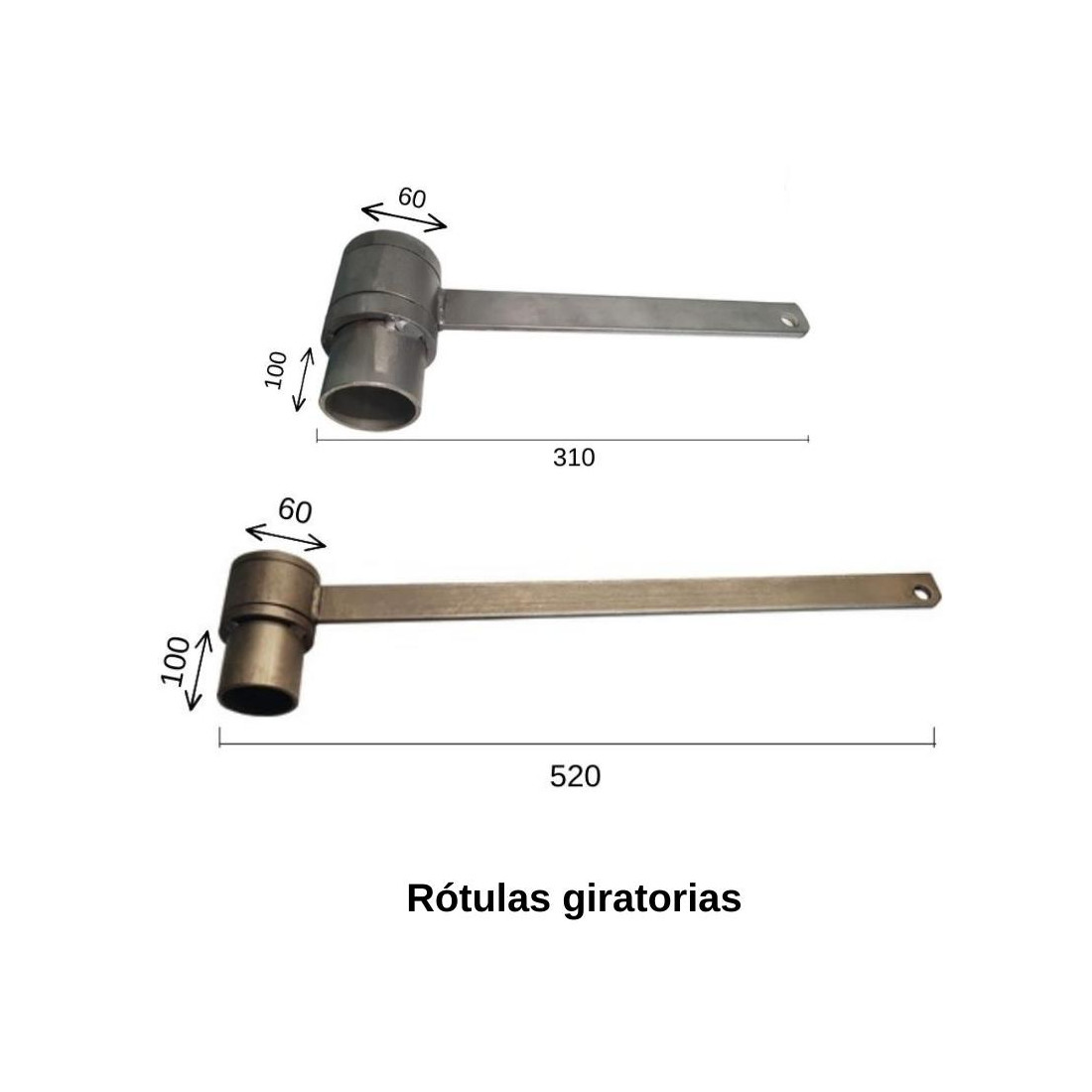

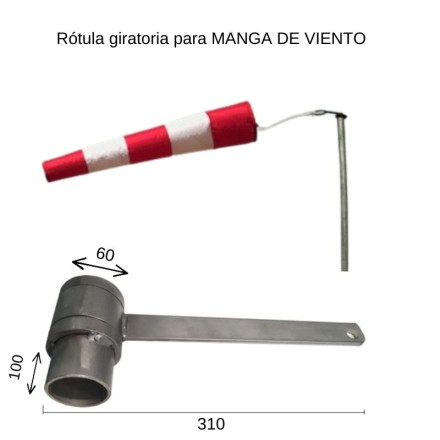

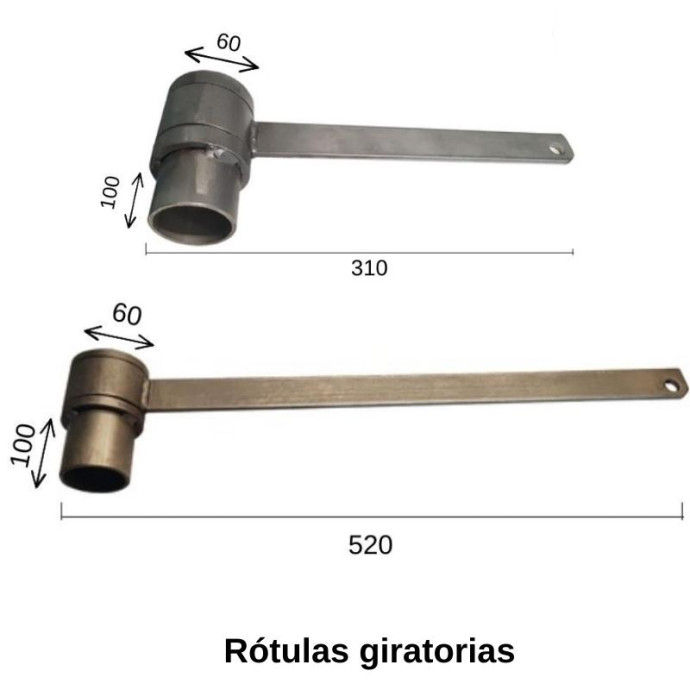

- Ref. 990-0254: Swivel joint for windsock 340-009040. Length 310 mm

- Ref. 990-0255: Swivel joint for windsock 340-009060 and 340-009085. Length 520 mm

Designed to indicate wind force and direction. They are divided into rings or stripes of red and white to be clearly recognizable from a distance.

Commonly used on roads, airfields, airports, heliports, generally where wind can be a hazard.

They are also required by factories with chemical elements that are harmful to health, as in case of an accident, indicating the wind direction alerts the authorities to evacuate due to gases, etc.

They are installed on sturdy poles that do not yield to strong gusts of wind, which can be supported by the swivel joints.
