Stainless steel rotating bracket for windsocks. Available in different sizes.
Stainless steel rotating bracket for windsocks. Available in different sizes.
Stainless steel rotating bracket for windsocks. Available in different sizes.
Stainless steel rotating bracket for windsocks. Available in different sizes.

Stainless steel rotating bracket for windsocks. Available in different sizes.

990-0254

Available in different sizes

Material: Stainless Steel

For 1600mm wind sleeves. (Ref. 340-009040)



Available ball joint sizes:

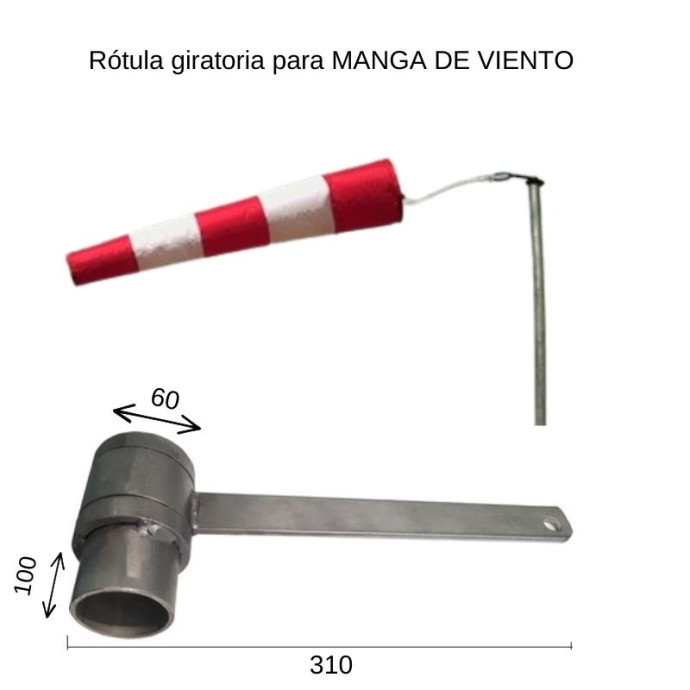

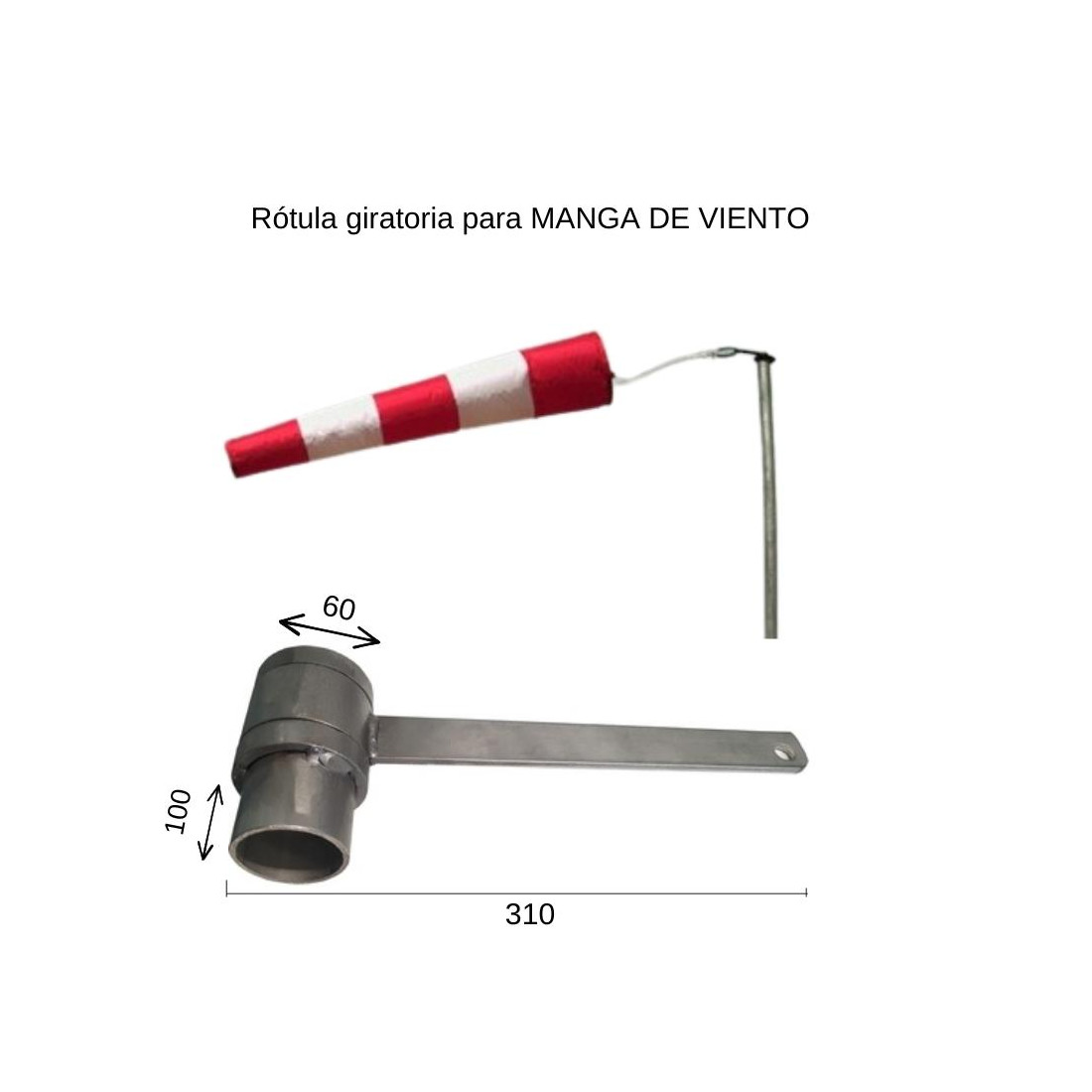

- Ref. 990-0254: Swivel ball joint for windsock 340-009040. Length 310 mm x Top Ø 60 mm. Bottom Ø: Ø 47 mm x Height: 100 mm.

- Ref. 990-0255: Swivel ball joint for windsocks 340-009060 and 340-009085. Length 520 mm x Top Ø 60 mm. Bottom Ø: Ø 47 mm x Height: 100 mm.

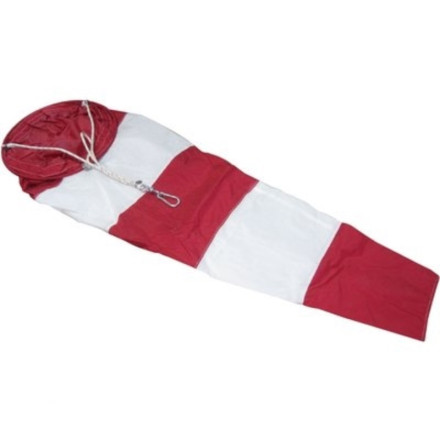

Available windsock sizes:

- Ref. 340-009040: Windsock with 400 mm ring. Length: 1600 mm.

- Ref. 340-009060: Windsock with 600 mm ring. Length: 2400 mm.

- Ref. 340-009085: Windsock with 850 mm ring. Length: 3000 mm.

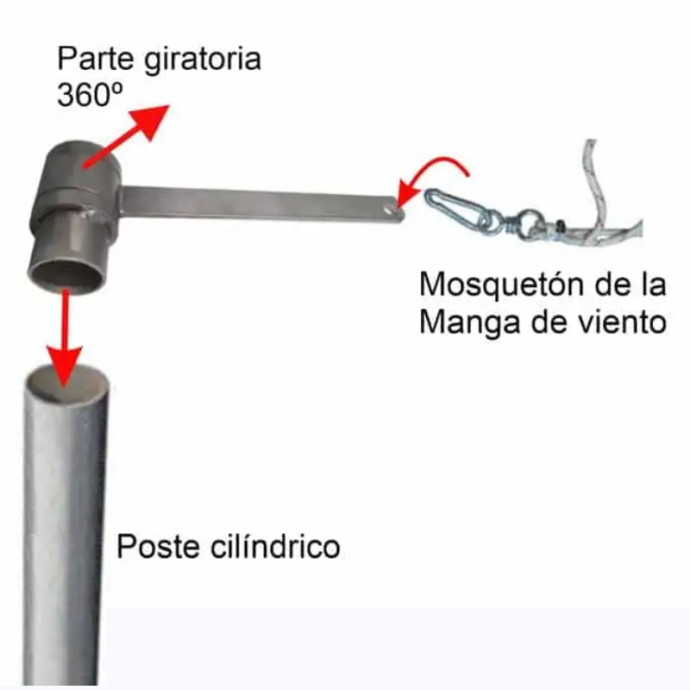

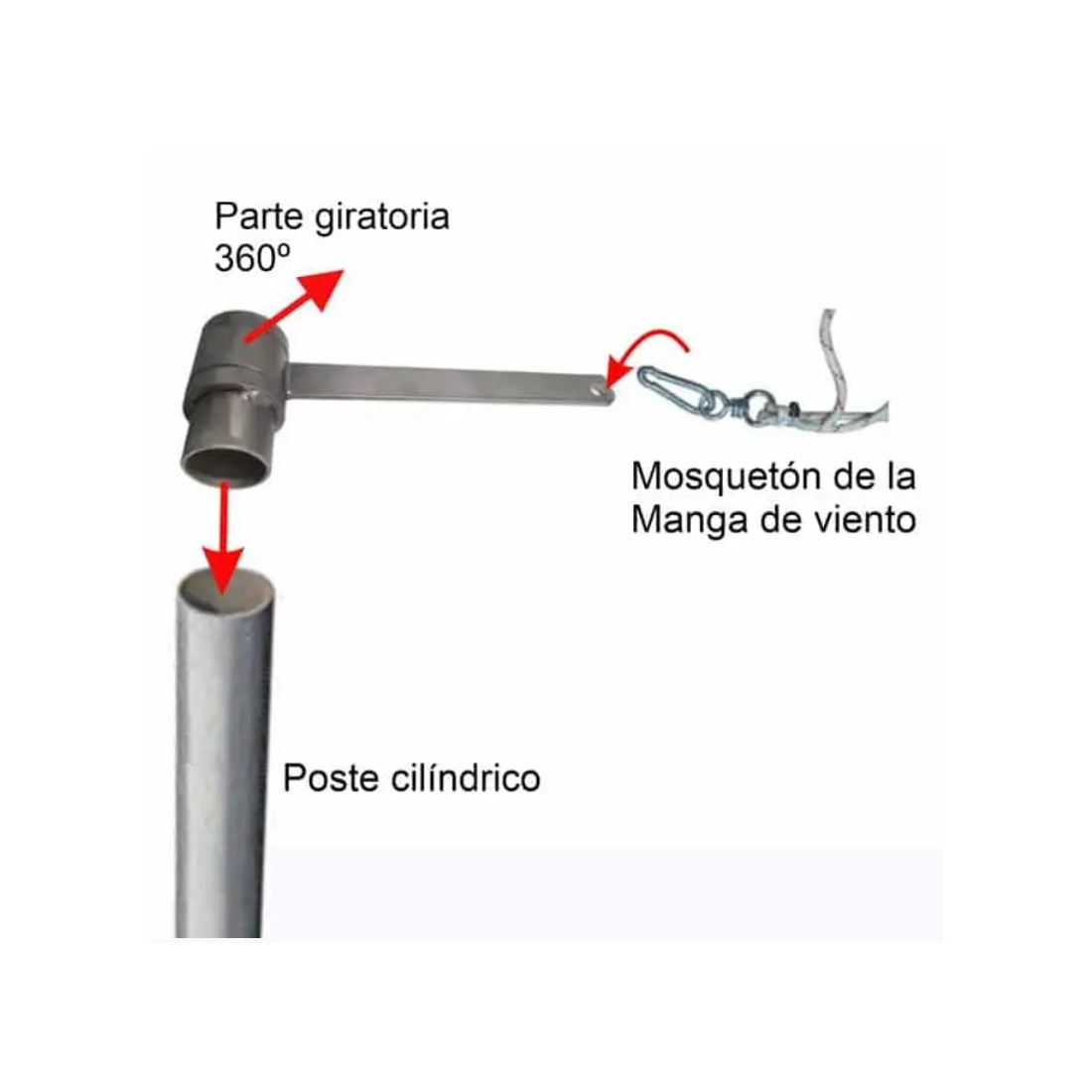

The ball joints are made of stainless steel with a bottom Ø of 48mm and a minimum length of 250 mm from the pole. At the end, they have a hole where the carabiner, which comes with the windsock, is installed.
