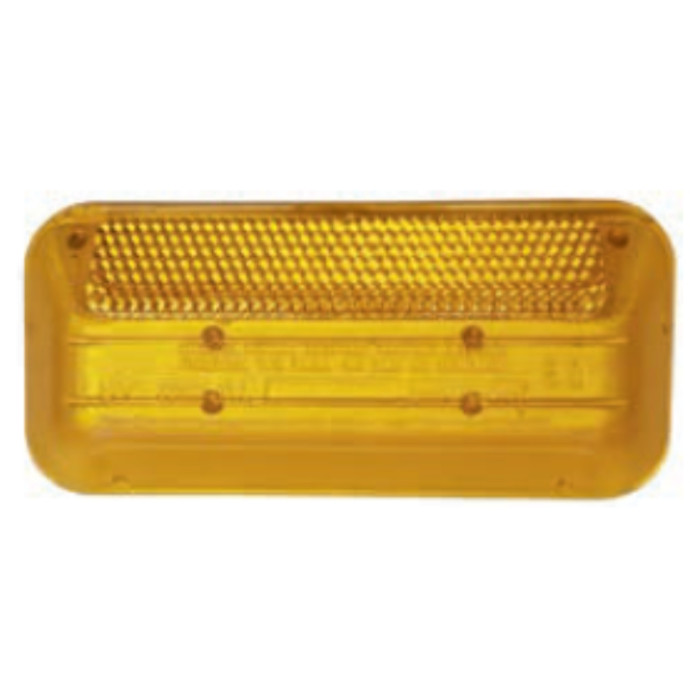

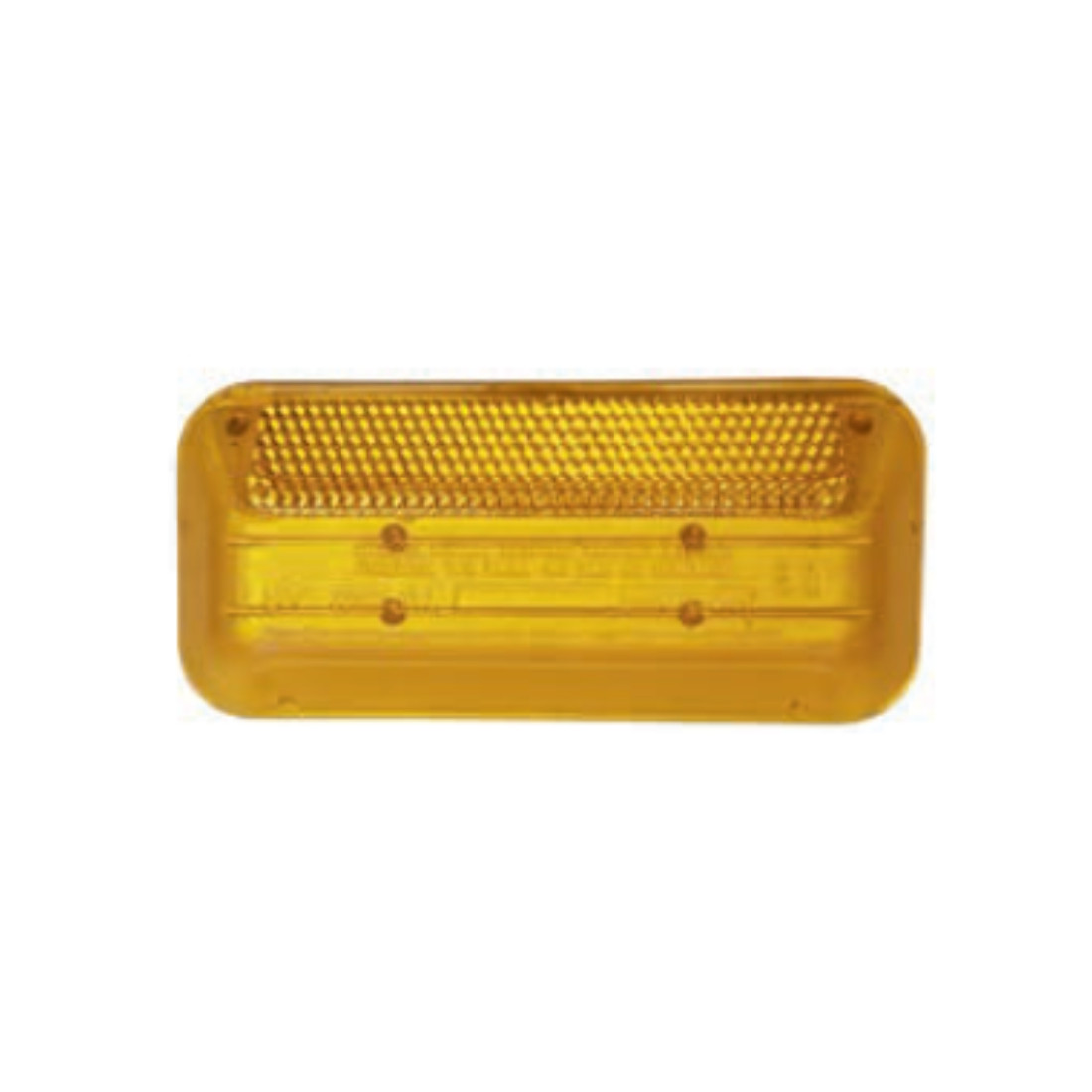

Rectangular methyl methacrylate reflector. Reflectors in different colors with a reflectance level of 2.

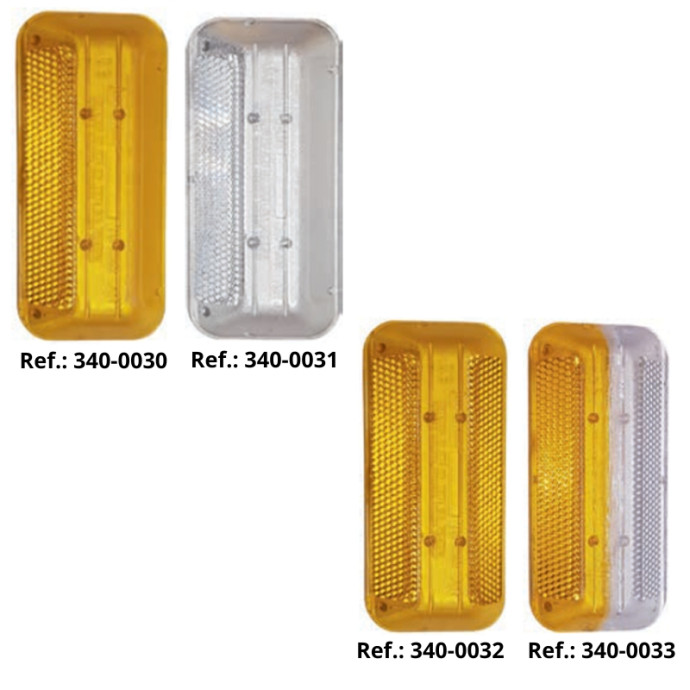

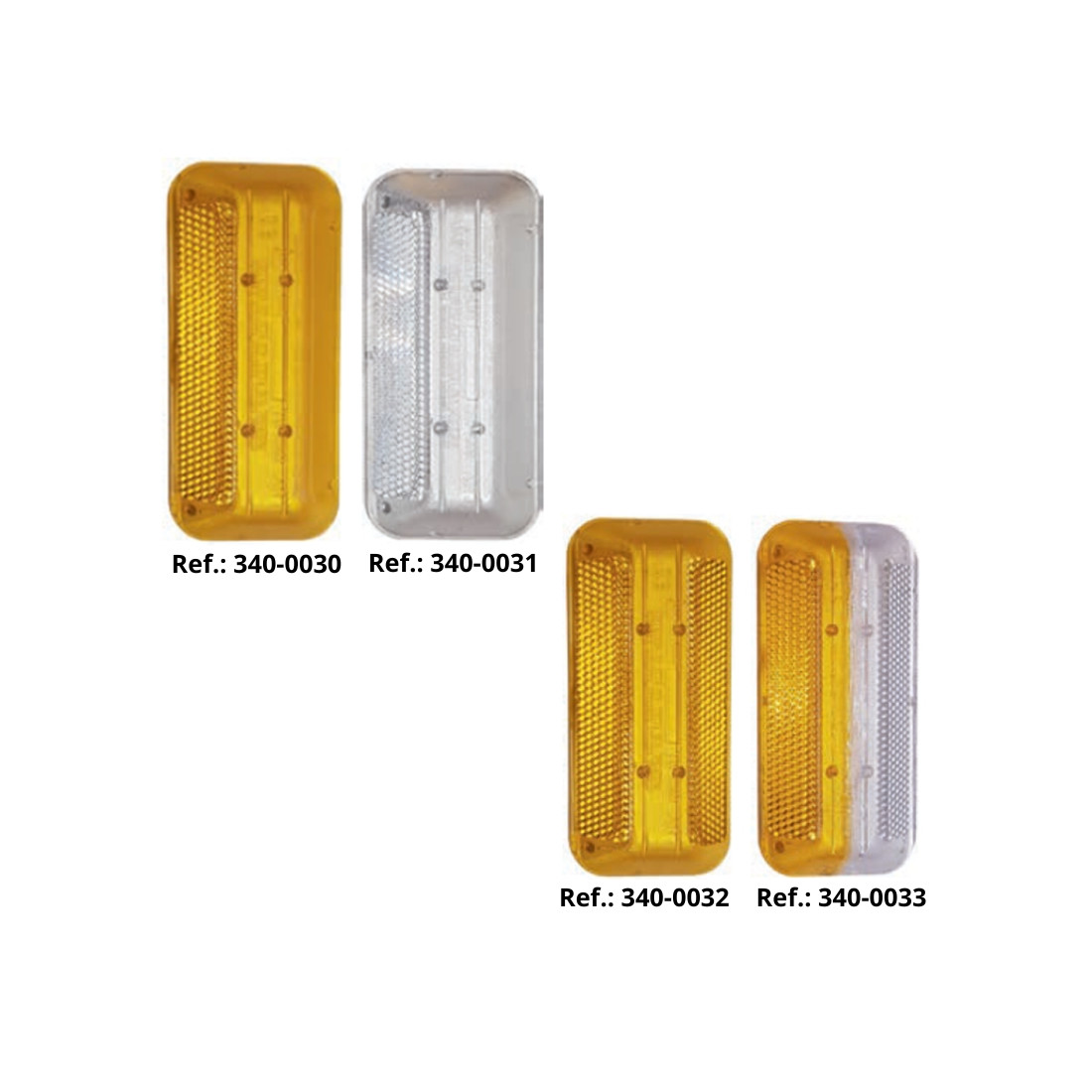

Available references:

- Ref. 340-0030: Yellow methacrylate with 2-in-1 face Amber reflex

- Ref. 340-0031: White methacrylate with 2-in-1 face White reflex

- Ref. 340-0032: Yellow methacrylate with 2-in-2 faces Amber / Amber reflex

- Ref. 340-0033: Yellow / white methacrylate with 2-in-2 faces Amber / White reflex

Beacon that offers maximum resistance, very high reflectivity (level 2 reflex), and a long life cycle.

Made of methacrylate methyl filled with an adhesive component that incorporates catadioptric elements.

Road studs are intended to delimit various sections of the road under low visibility conditions, making them more visible by reflecting the vehicle's light on the product's catadioptric elements.

They refract the light from vehicles, delimiting the edges of the road on both the right margin (usually amber) and the left margin (usually white).

The application will be done using resin or adhesive.

ASSEMBLY

It is carried out with a special adhesive under the following criteria*:

- Straight sections: every 25 m on highways and every 15 m on conventional roads.

- Curves: every 5-10 m depending on the radius.

- Exits and entrances every 5-3 m.

*These criteria are indicative since there is no standard that sets these parameters, and the criteria of the Contracting Authority must be followed.

*For the assembly of the beacons, the surface where it will be placed must be cleaned, free of dust and grease, the special adhesive for beacons must be applied, and then the beacon must be placed on it, allowing it to dry and harden. It is recommended to use one bottle of adhesive (2.5 kg) for every 14-16 beacons.

REGULATIONS:

Complies with standard UNE-EN-1463-1/A1:2004 CE Marking. (Certificate No. 0099/CPD/A72/2006)
