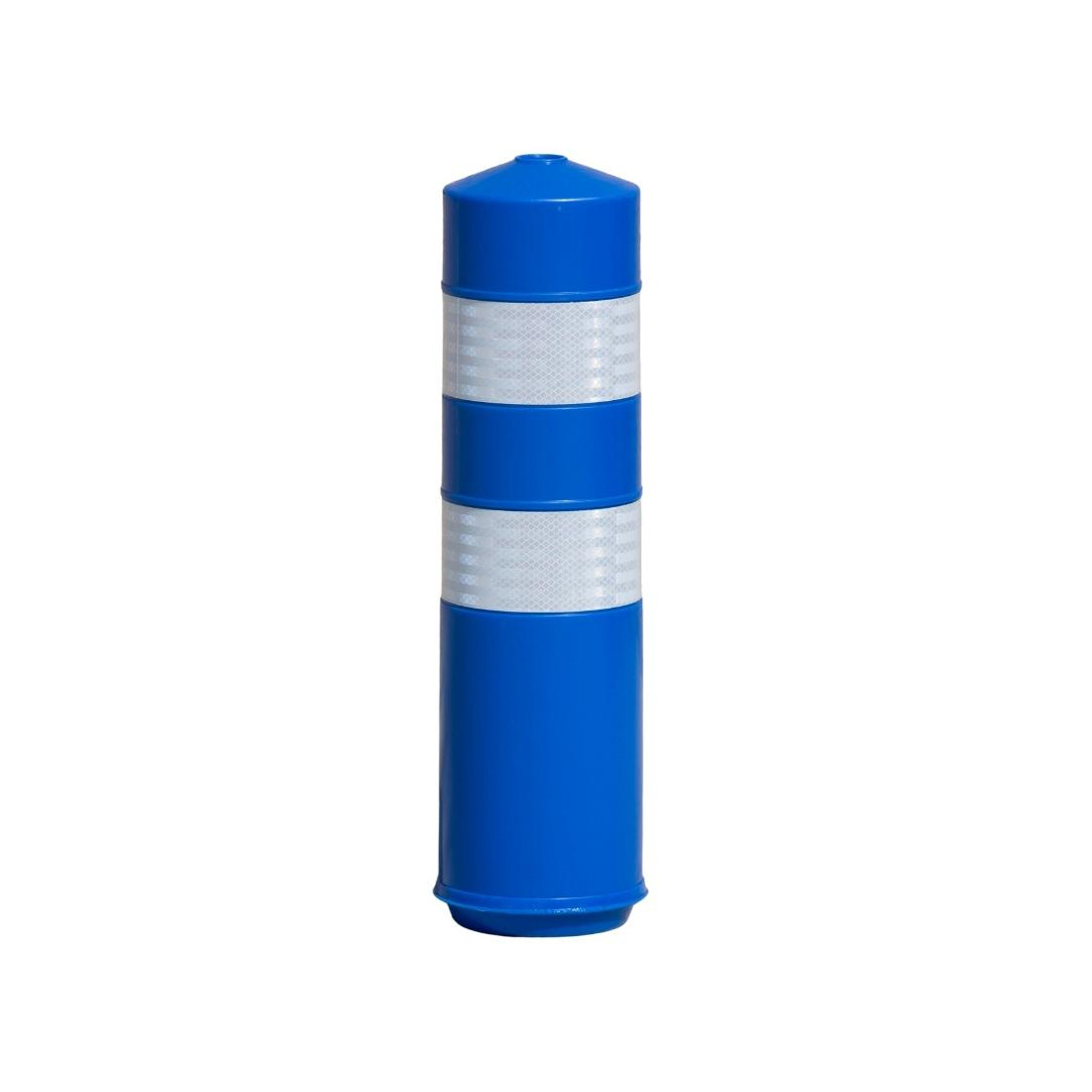

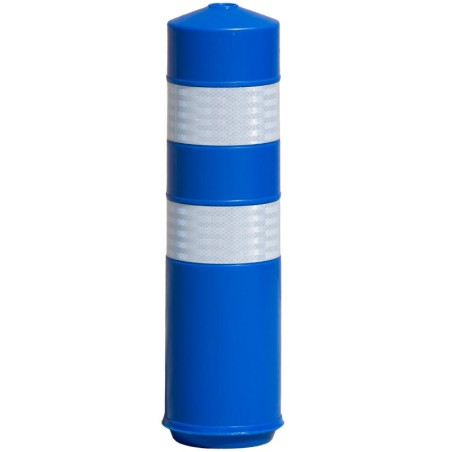

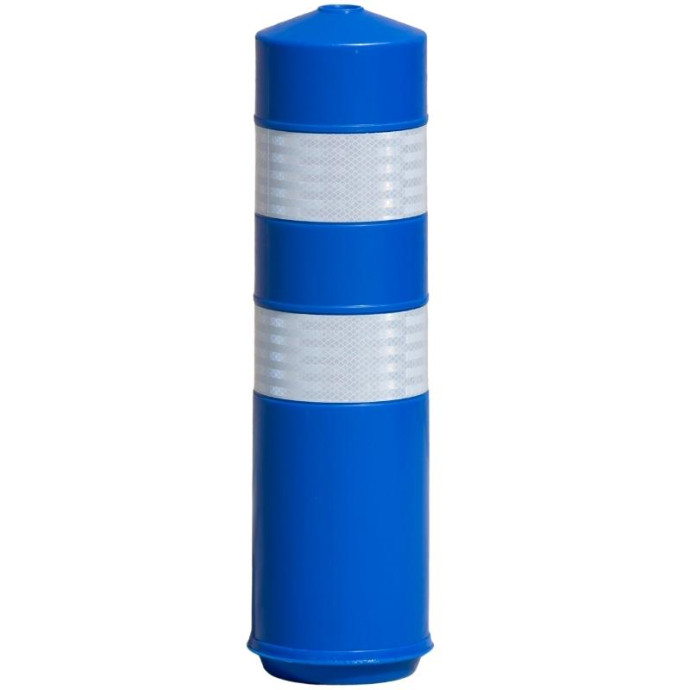

Flexible EVA Blue Resistant H75 Beacon

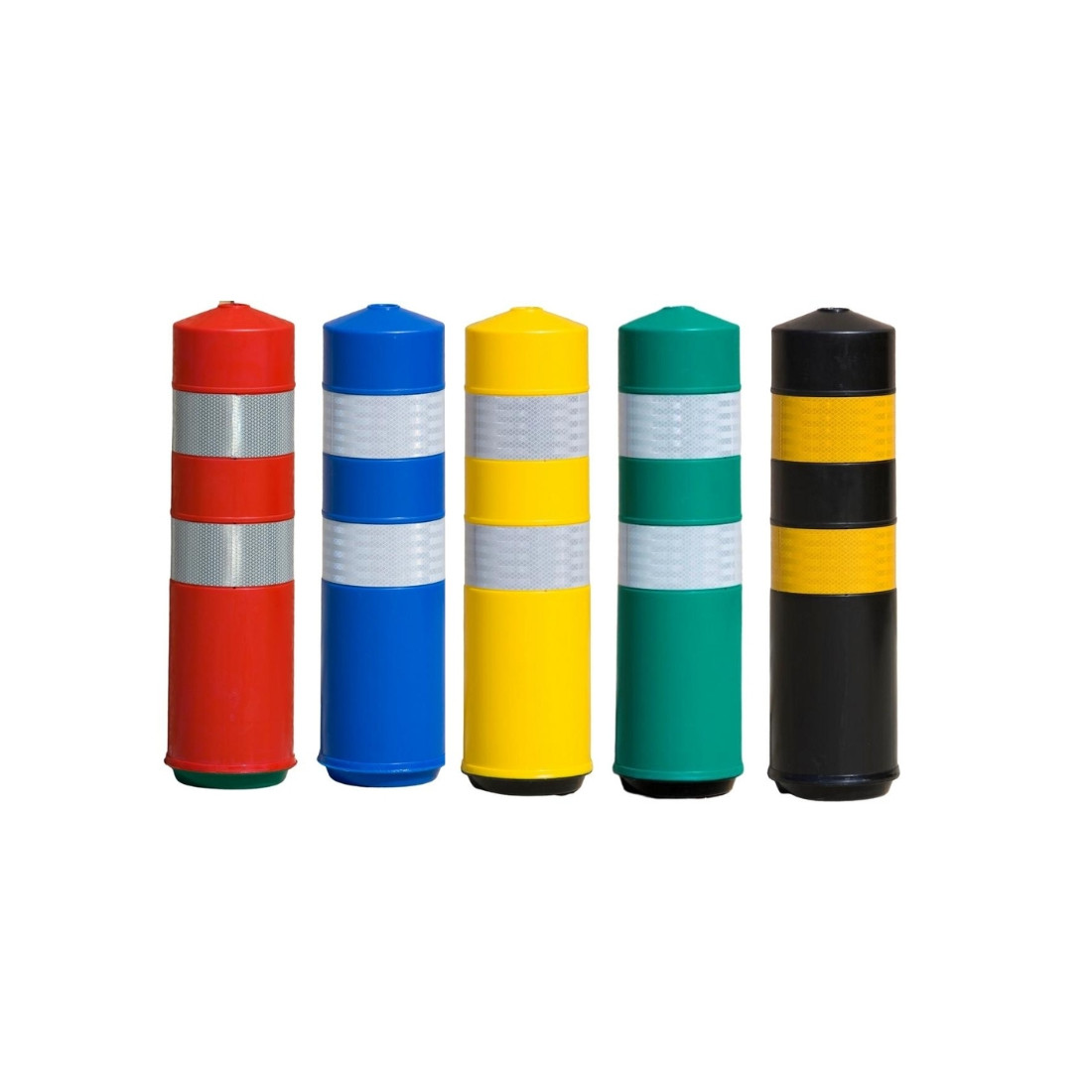

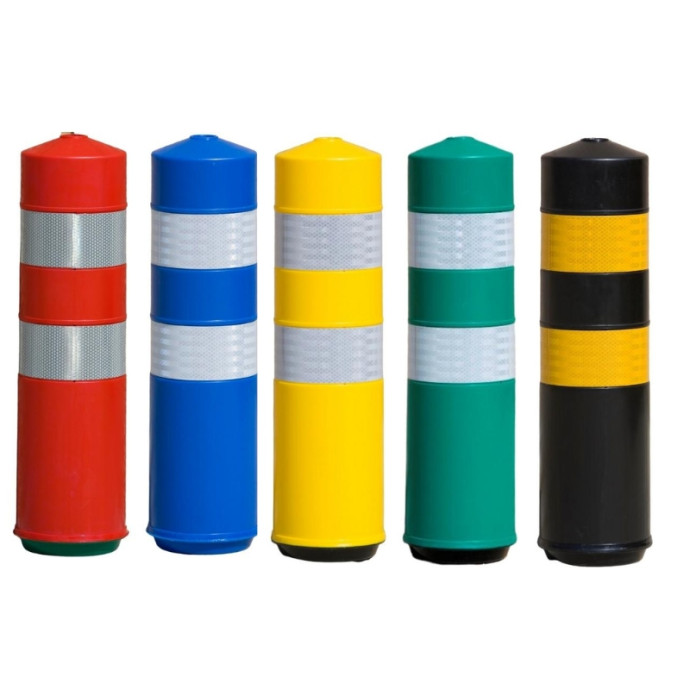

Also available in the following colors:

- Ref. 302-0022VE: Green

- Ref. 302-0022AM: Blue

- Ref. 302-0022RO: Red

- Ref. 302-0022NE: Black

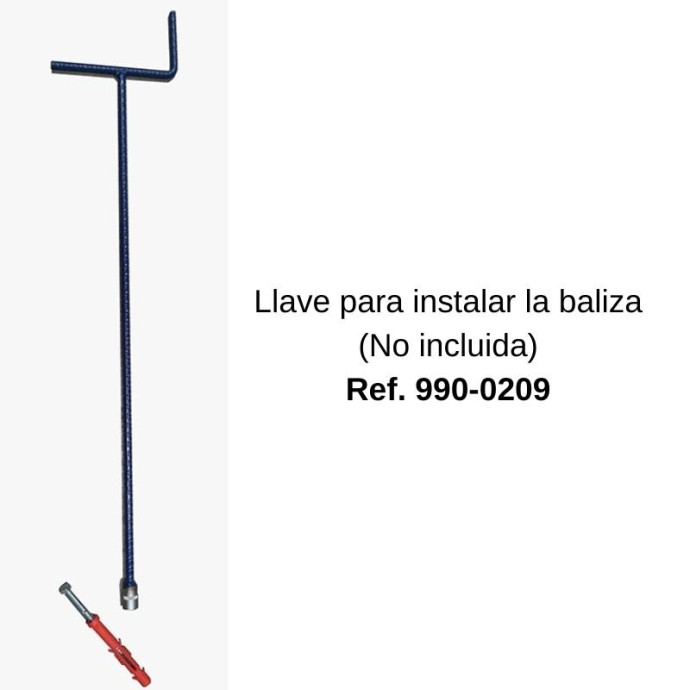

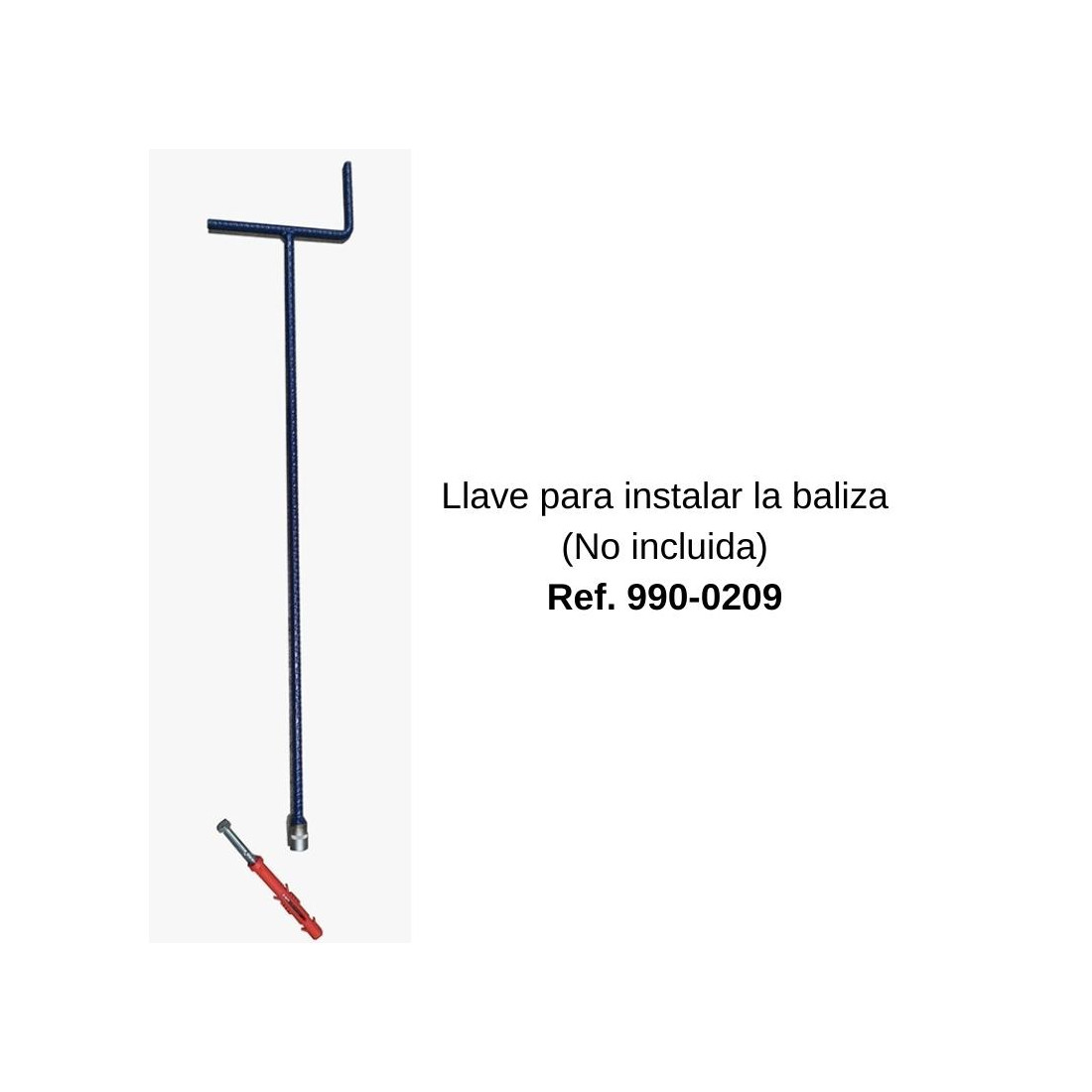

If a tool is needed for installation, use reference 990-0209.

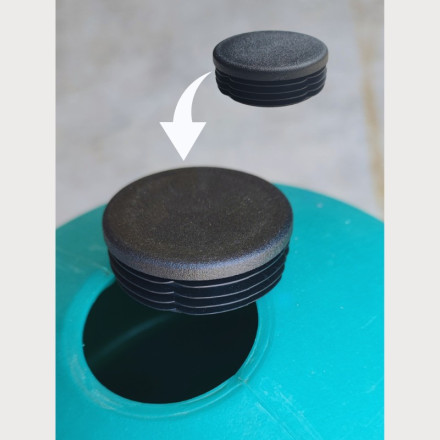

There is also a black cap available for the beacons (Ref. 990-0040)

High-quality milestone. Performs well outdoors, in marine environments, against chemical agents, and impacts.

No maintenance required.

Its two reflective bands are Level II and make it very visible both day and night. Resistant to being run over.

Complies with standard UNE 135-363

Very easy to install using a screw between the base of the beacon and the ground. Includes plug and screw for fixing to the ground.

Made of elastomer specially stabilized to light. It has two perimeter reflective bands with their ends mechanically fixed for optimal film permanence. Its conical base, protected by an indeformable saucer, facilitates the folding of the beacon without tears or permanent deformations

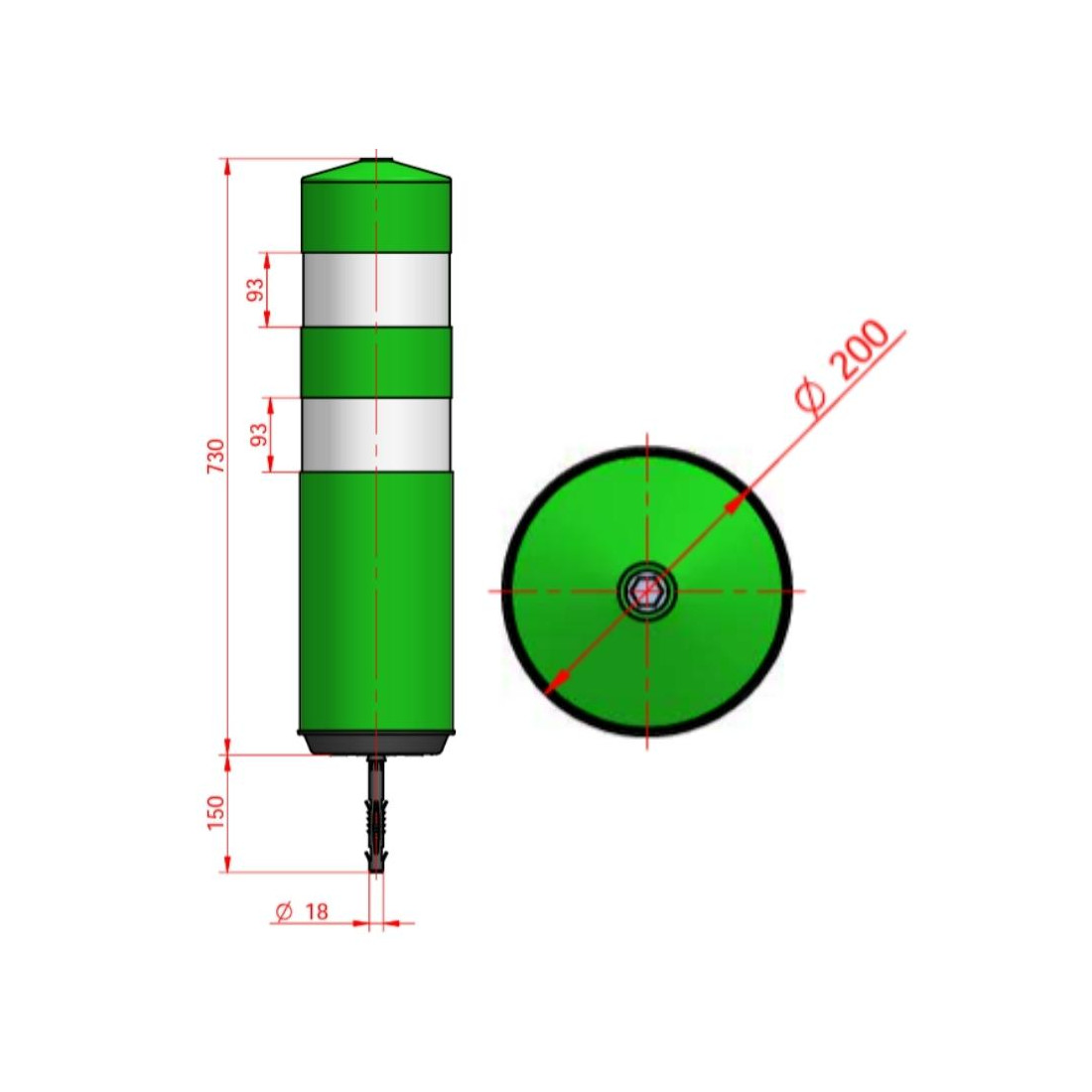

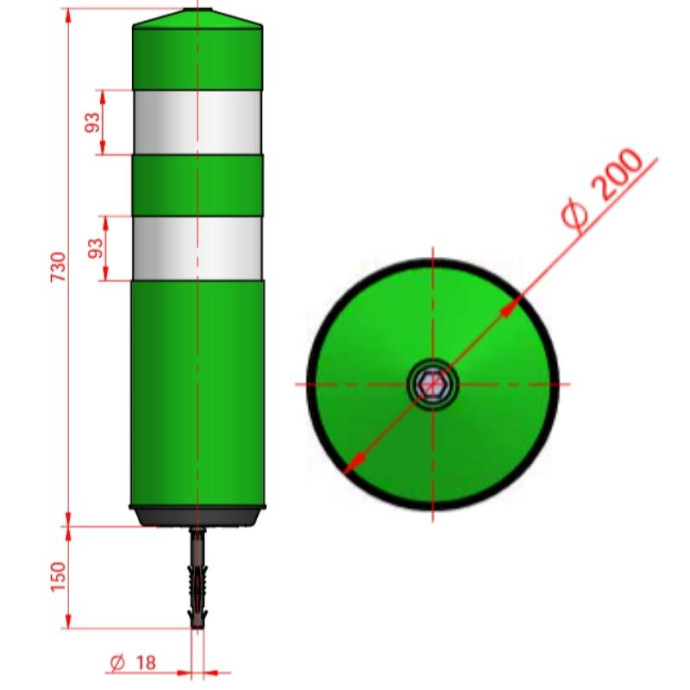

An 18 mm diameter x 160 mm deep hole made in the pavement is all that is needed for installation, which, when done correctly, guarantees long-term placement, resistant to repeated impacts and run-overs.

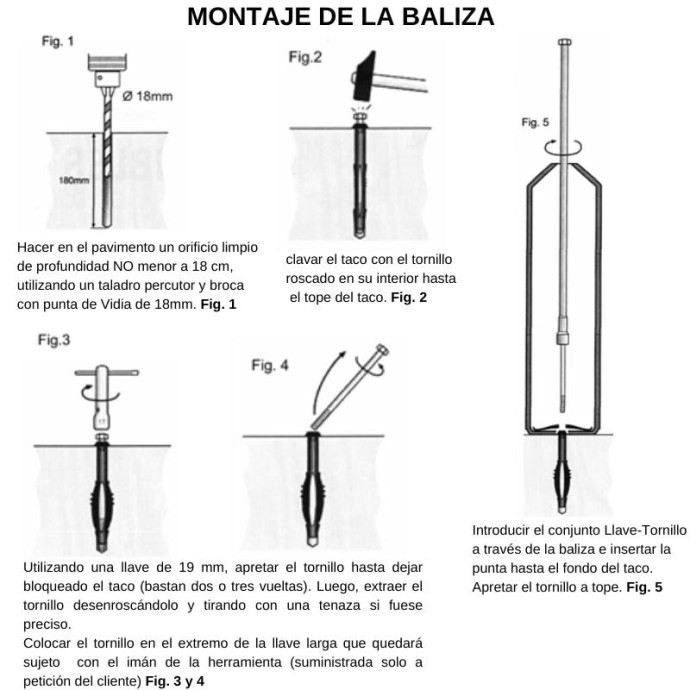

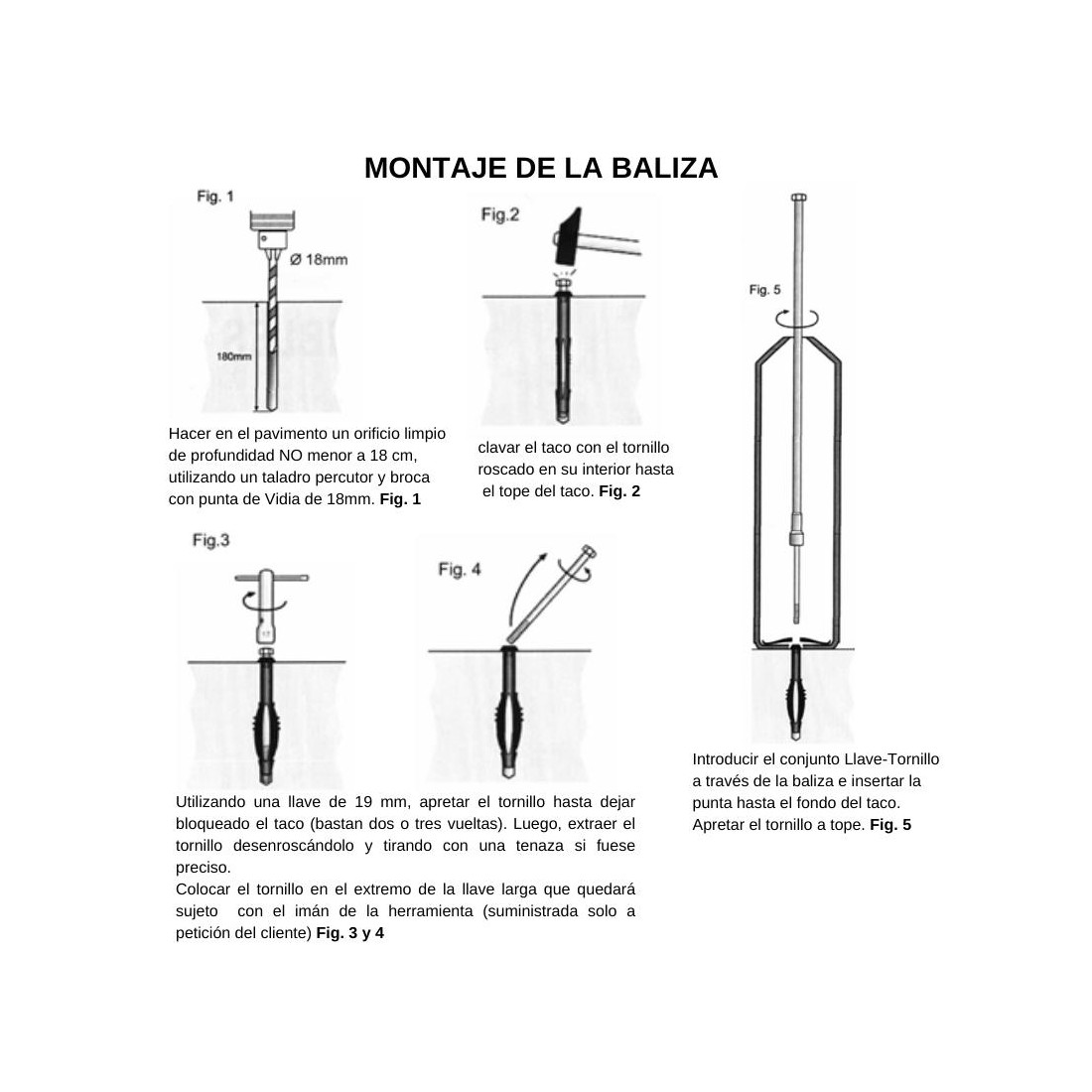

ASSEMBLY OF MILESTONE

1.- Make a clean hole in the pavement with a depth of NOT less than 18cm, using a hammer drill and a 18mm carbide-tipped drill bit

2.- Using a hammer, drive the plug with the threaded screw inside it until the plug is fully seated

3.- Using a 19 mm wrench, tighten the screw until the plug is locked (two or three turns are enough). Then, remove the screw by unscrewing it and pulling with pliers if necessary

4.- Place the screw at the end of the long wrench that will be held by the tool's magnet (supplied only upon customer request).

5.- Insert the Screw-Wrench assembly through the beacon and insert the tip all the way into the plug

6.- Tighten the screw all the way
