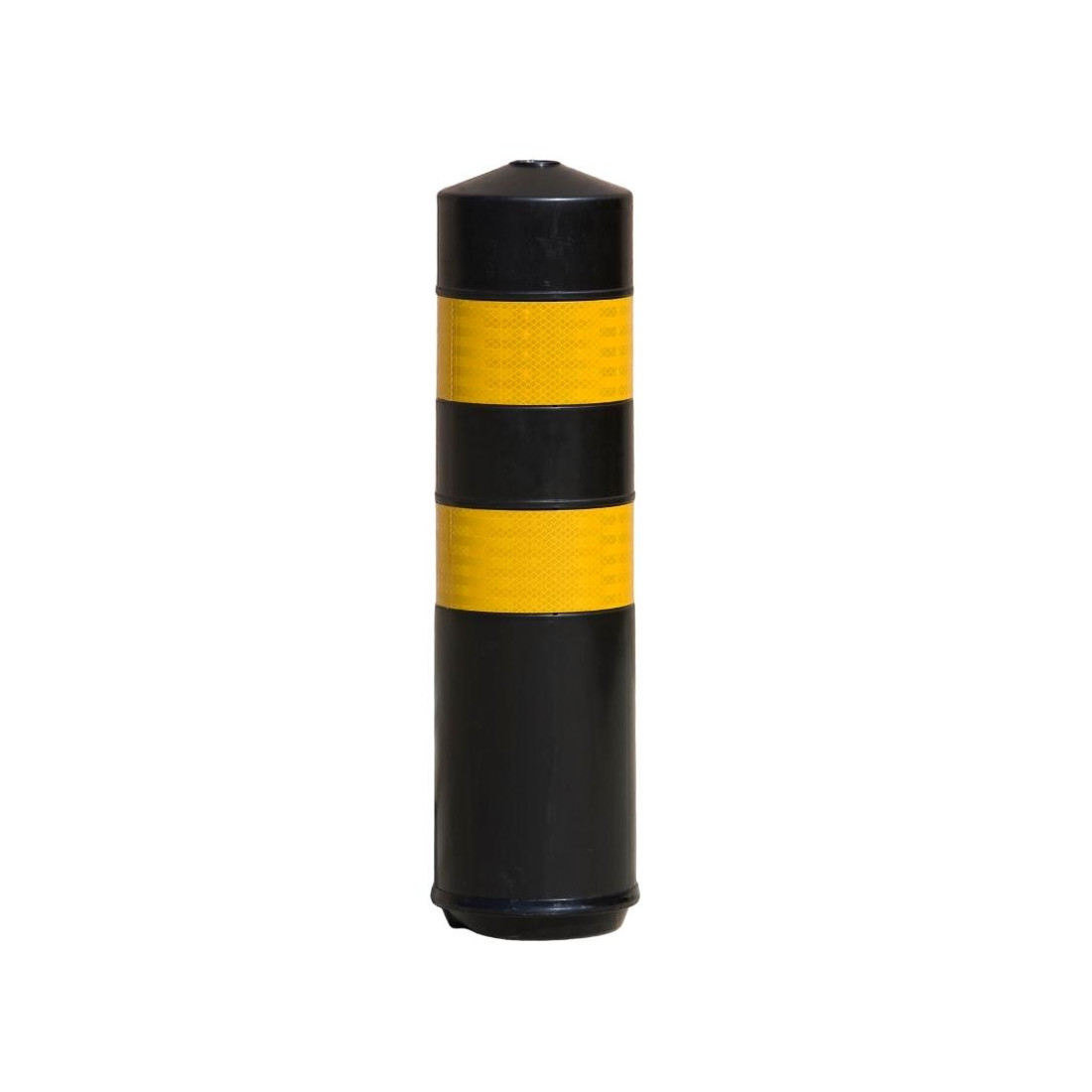

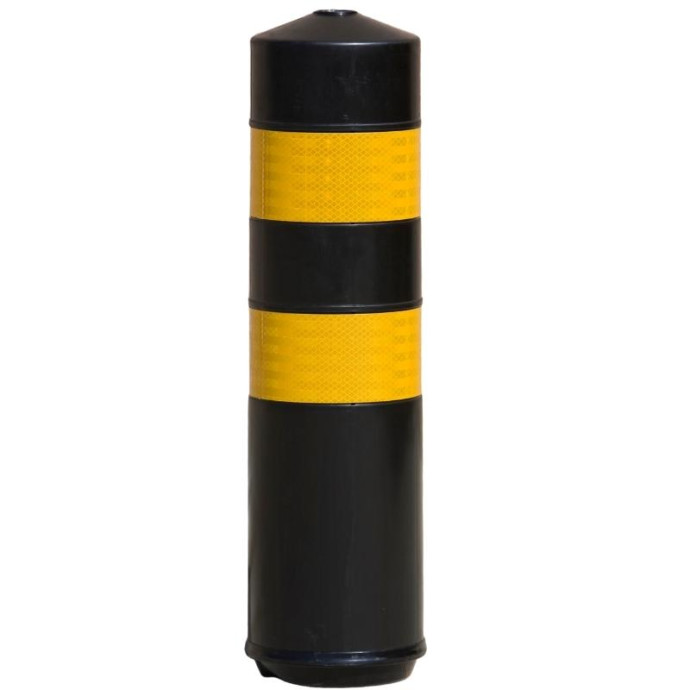

Flexible black EVA H75 beacon, resistant

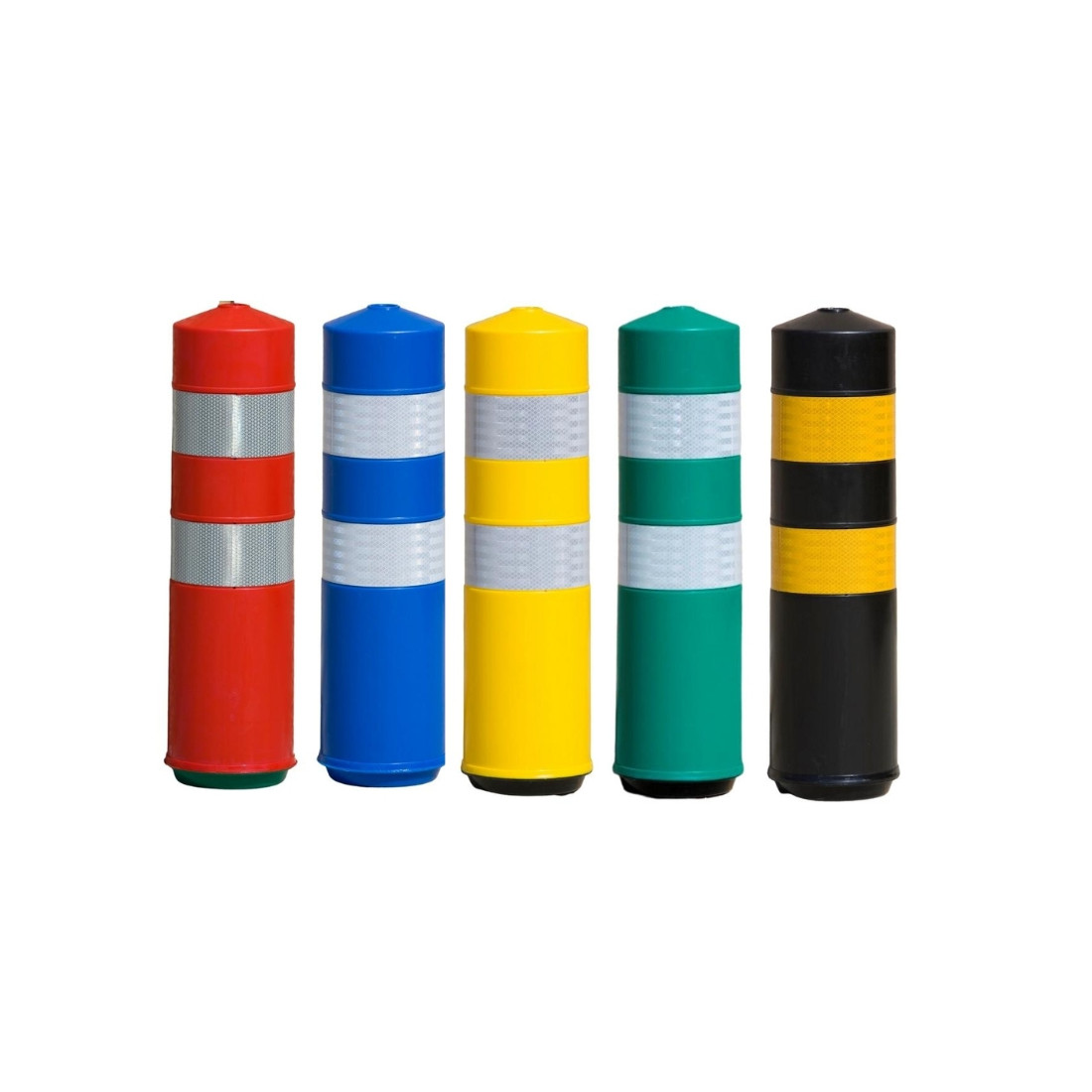

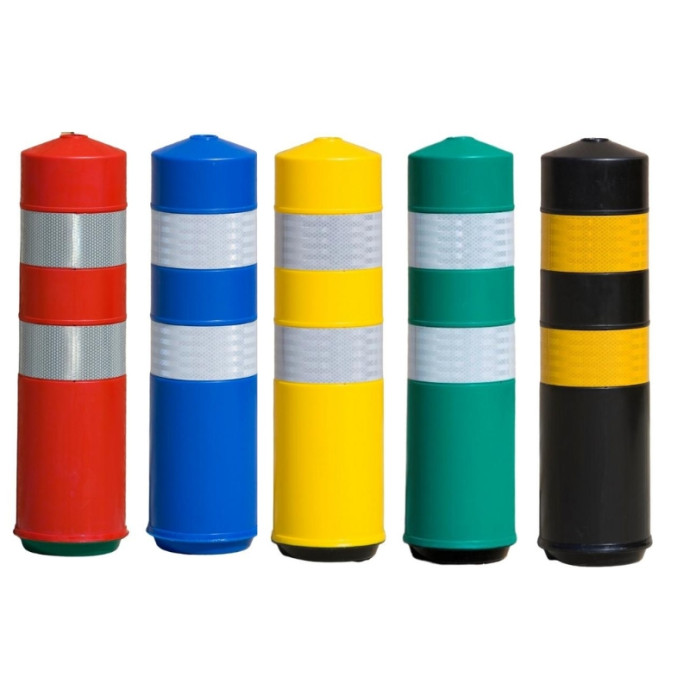

Also available in the following colors:

- Ref. 302-0022VE: Green

- Ref. 302-0022AZ: Blue

- Ref. 302-0022RO: Red

- Ref. 302-0022AM: Yellow

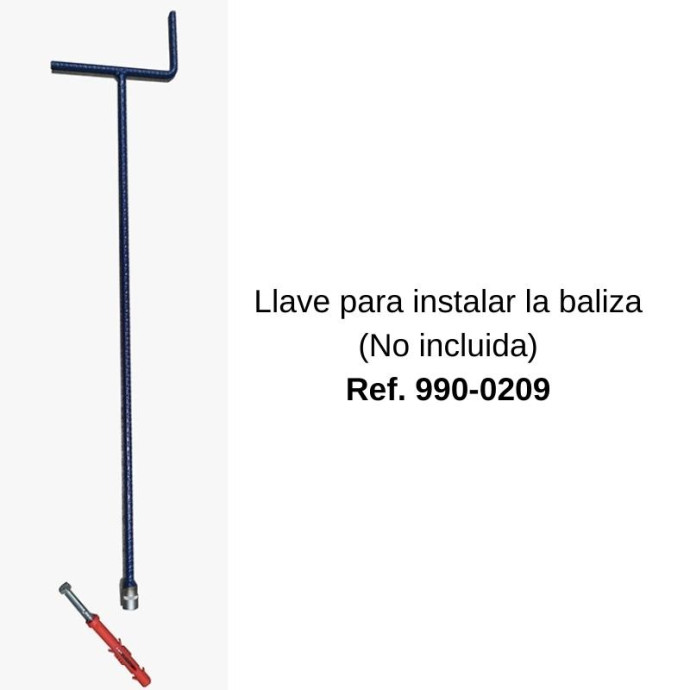

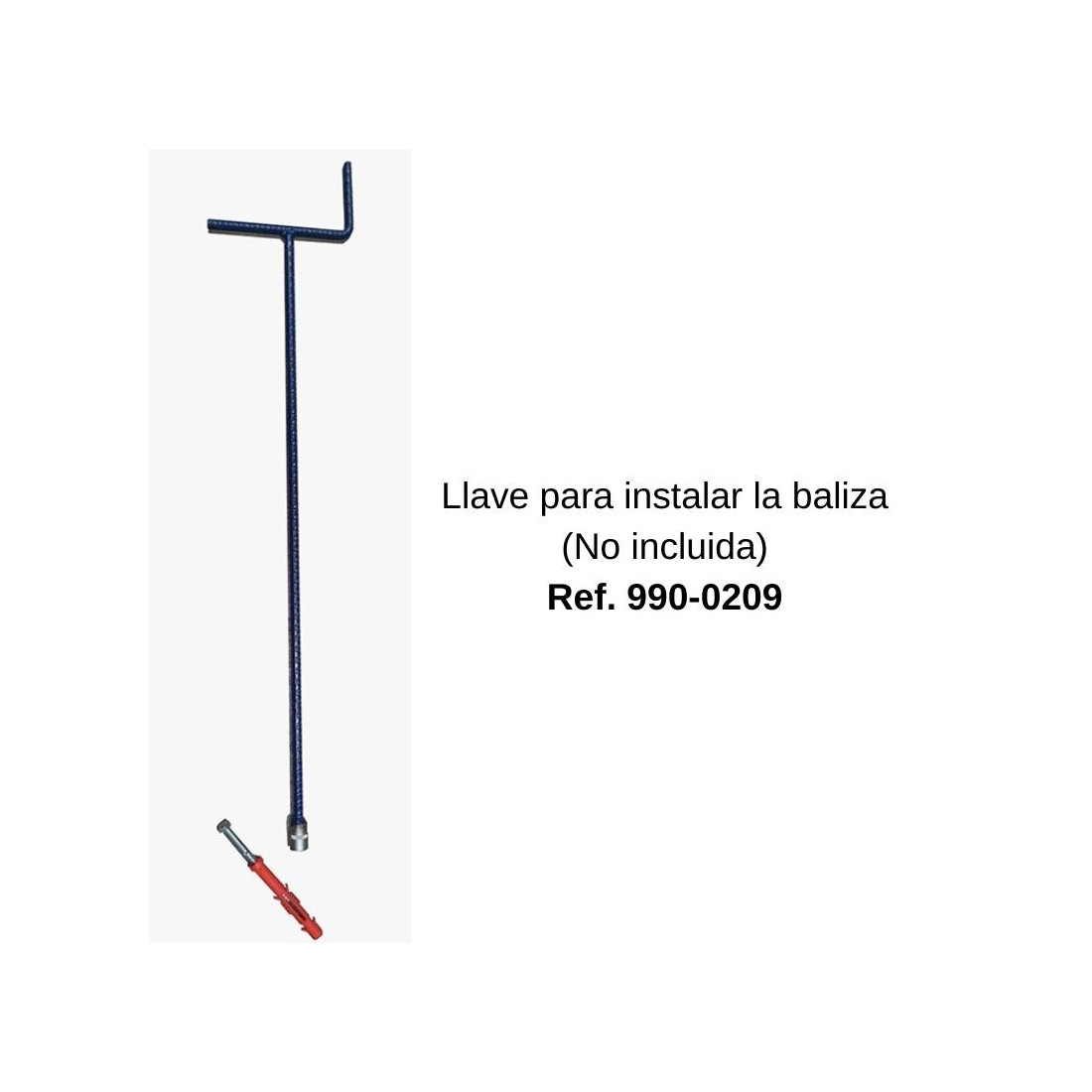

If a tool is needed for installation, use reference 990-0209.

There is also a black cap available for the beacons (Ref. 990-0040)

High-quality milestone. Performs well outdoors, in marine environments, against chemical agents, and impacts.

No maintenance required.

Its two reflective bands are Level II and make it very visible both day and night. Resistant to being run over.

Complies with standard UNE 135-363

Very easy to install using a screw between the base of the beacon and the ground. Includes anchor and screw for ground fixation.

Made of elastomer specially stabilized to light. It has two perimeter reflective bands with their ends mechanically fixed for optimal film permanence. Its conical base, protected by an indeformable plate, facilitates the folding of the beacon without tears or permanent deformations

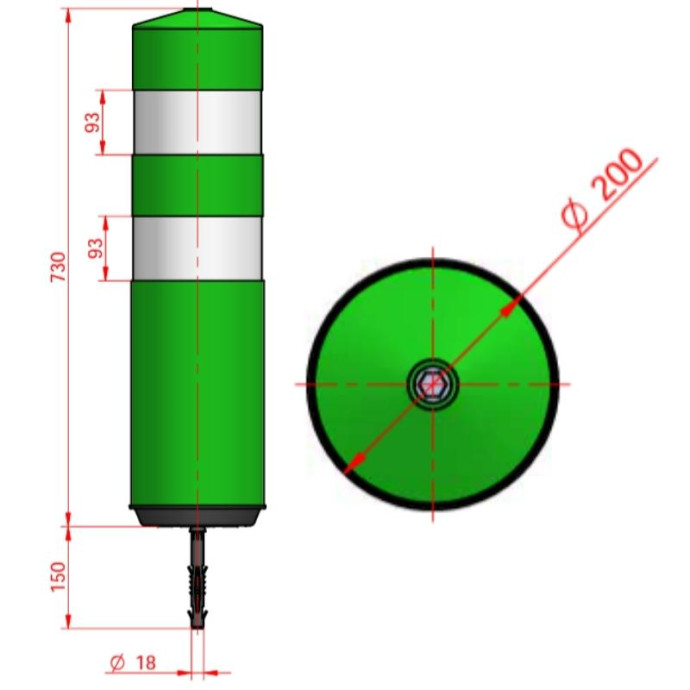

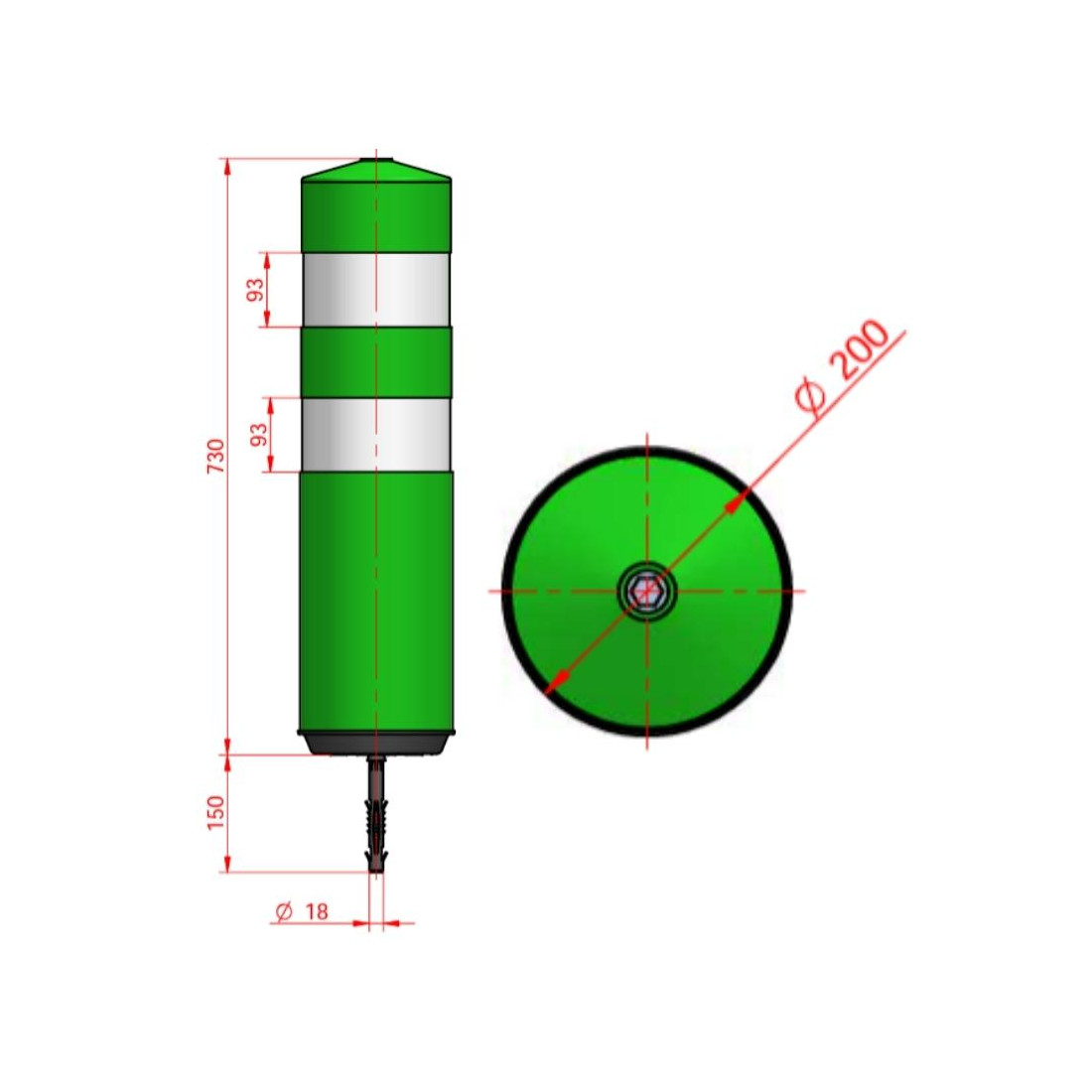

An 18 mm diameter x 160 mm deep hole made in the pavement is all that is needed for installation, which, when done correctly, guarantees a long-lasting presence in its location, resistant to repeated impacts and run-overs.

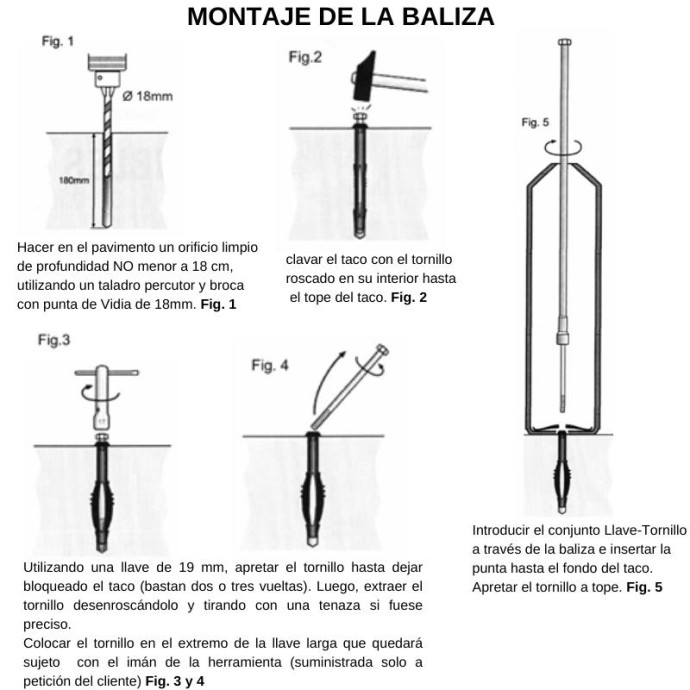

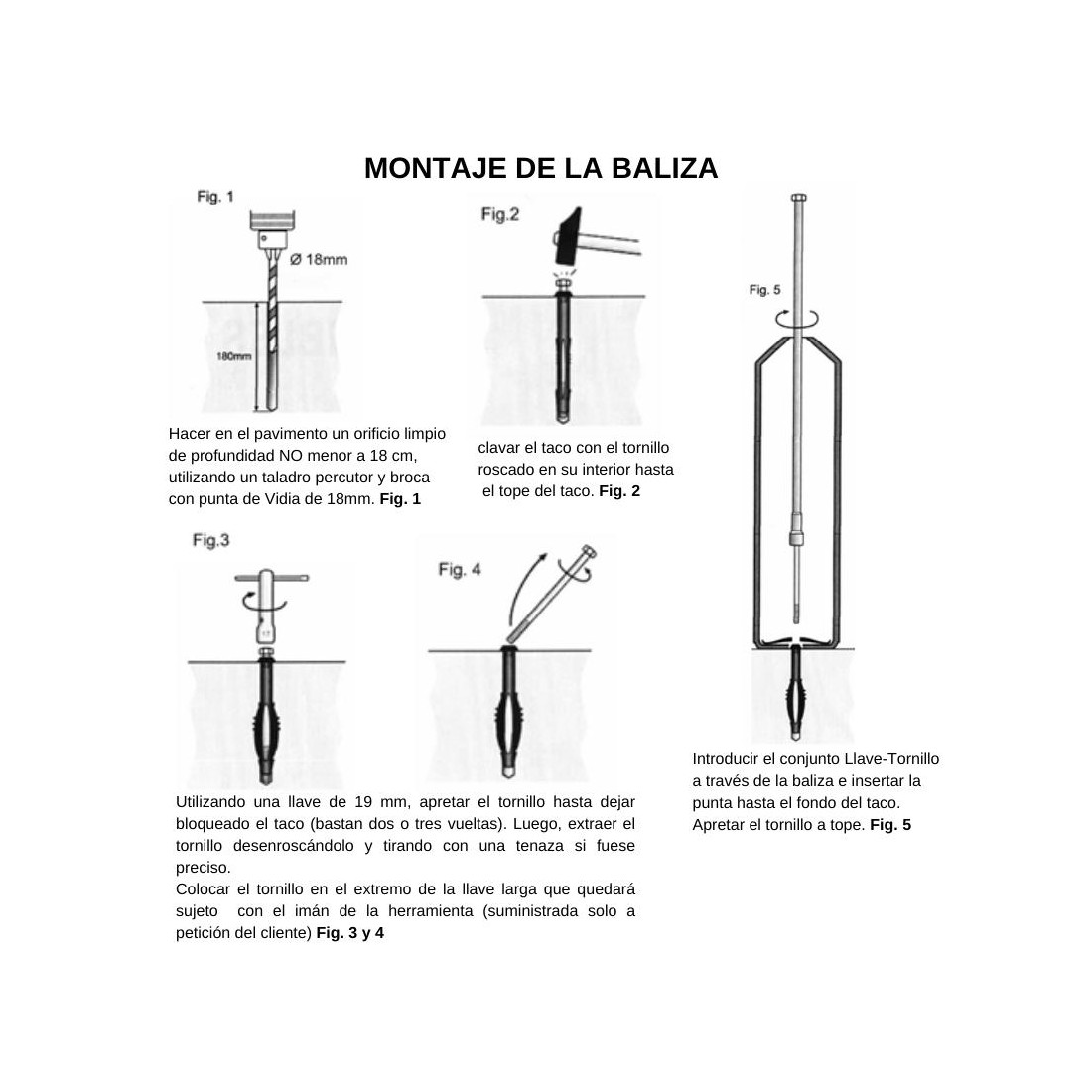

BEACON ASSEMBLY

1.- Make a clean hole in the pavement with a depth of NOT less than 18cm, using a hammer drill and a 18mm carbide-tipped drill bit

2.- With a hammer, drive the anchor with the threaded screw inside it until the anchor stops

3.- Using a 19 mm wrench, tighten the screw until the anchor is locked (two or three turns are enough). Then, remove the screw by unscrewing it and pulling with pliers if necessary

4.- Place the screw at the end of the long wrench that will be held by the tool's magnet (supplied only upon customer request).

5.- Insert the Screw-Wrench assembly through the beacon and insert the tip all the way to the bottom of the anchor

6.- Tighten the screw all the way
